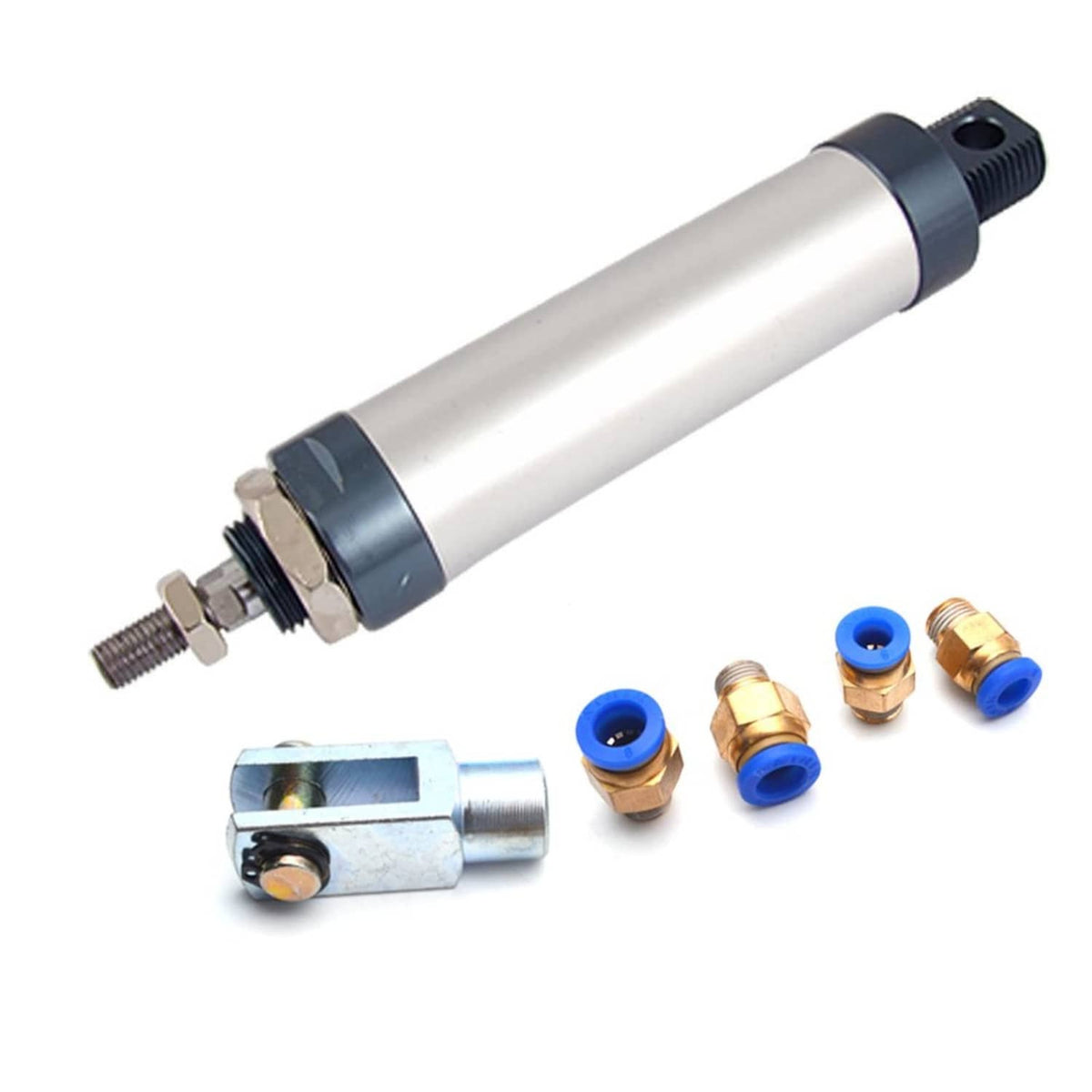

  • Double-acting pneumatic air cylinder with mounting bracket, single rod, silver and dark blue.

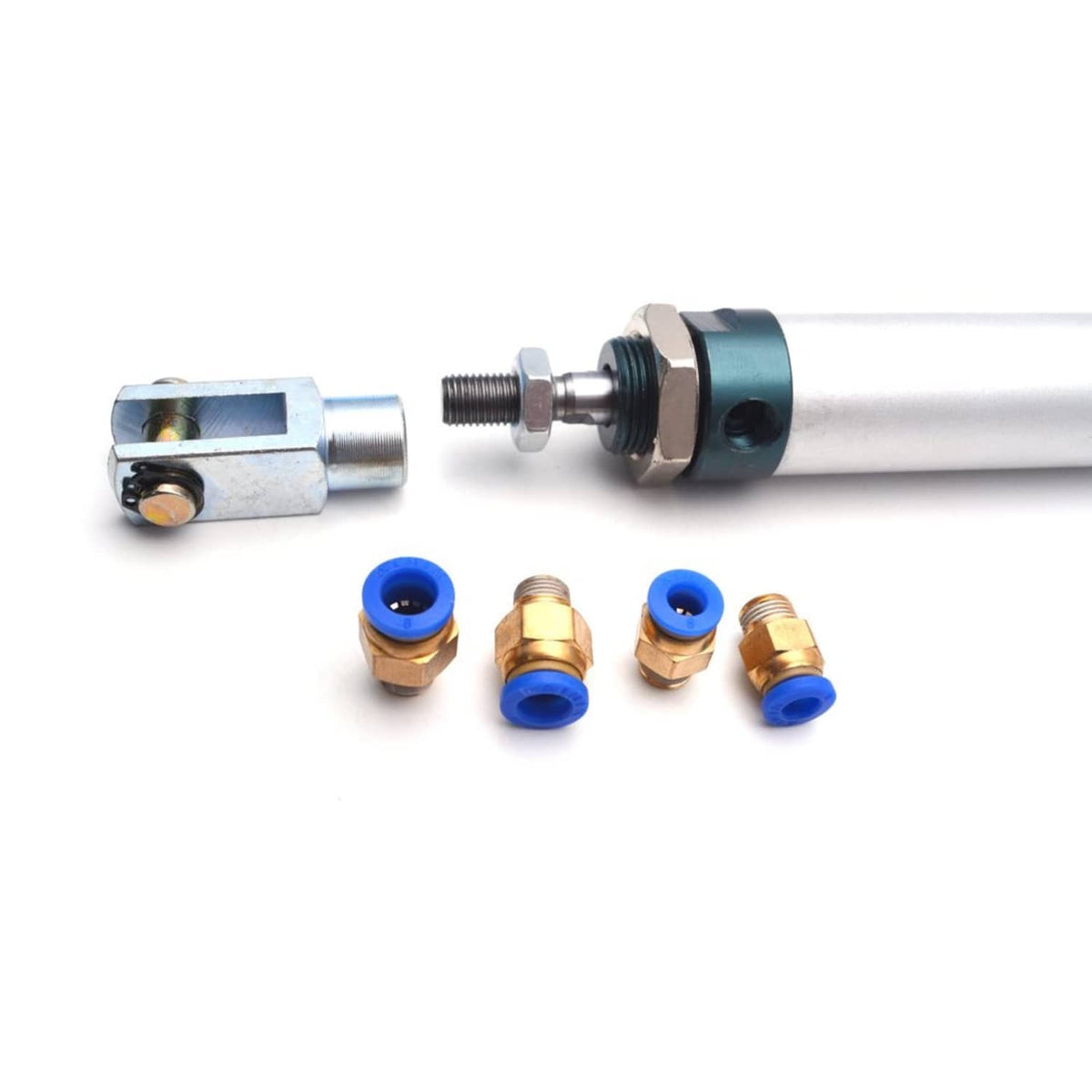

  • Pneumatic air cylinder with rod end and port fittings, showing brass and blue connection seals.

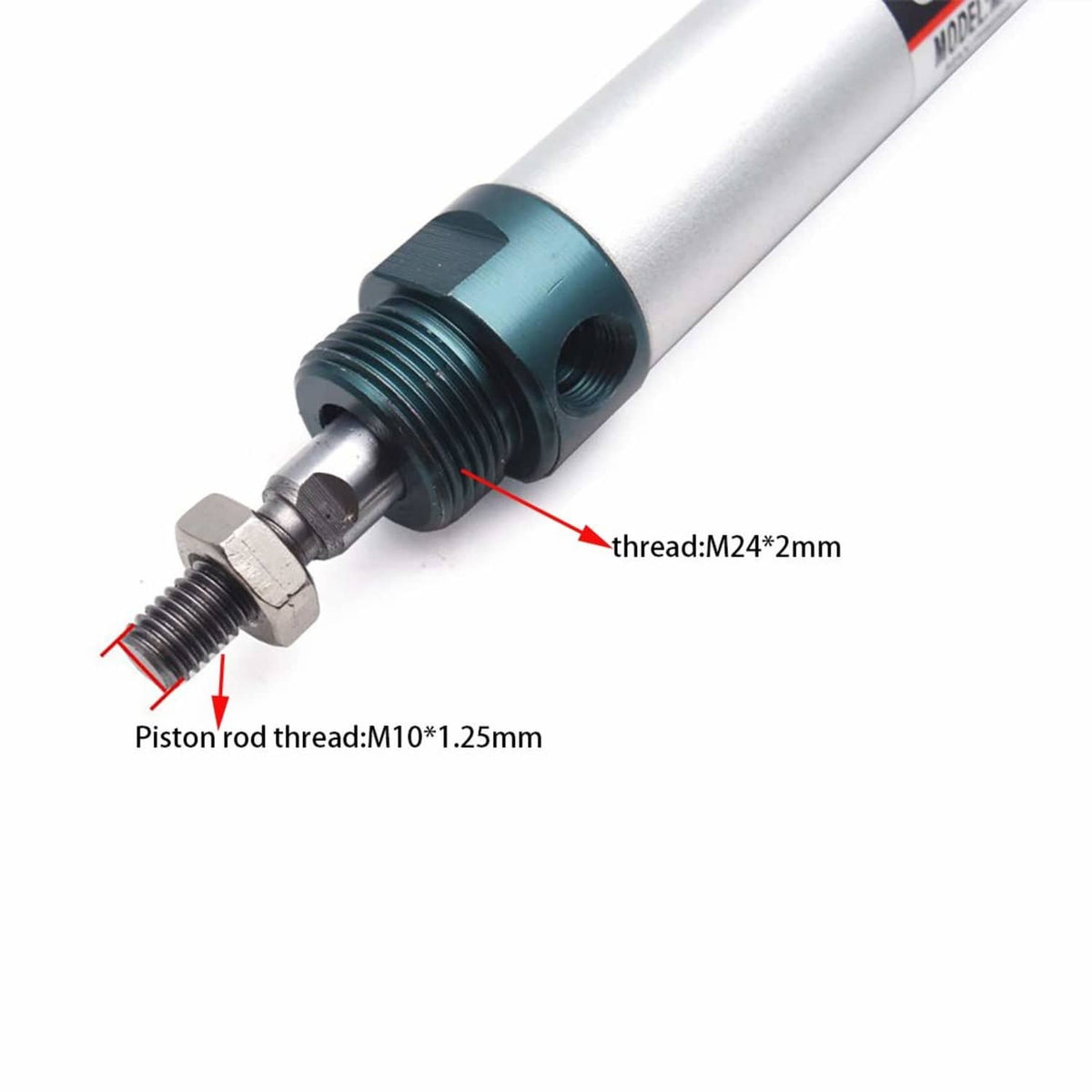

  • Pneumatic cylinder rod end showing M10 piston-thread and M24 thread sleeve detail.

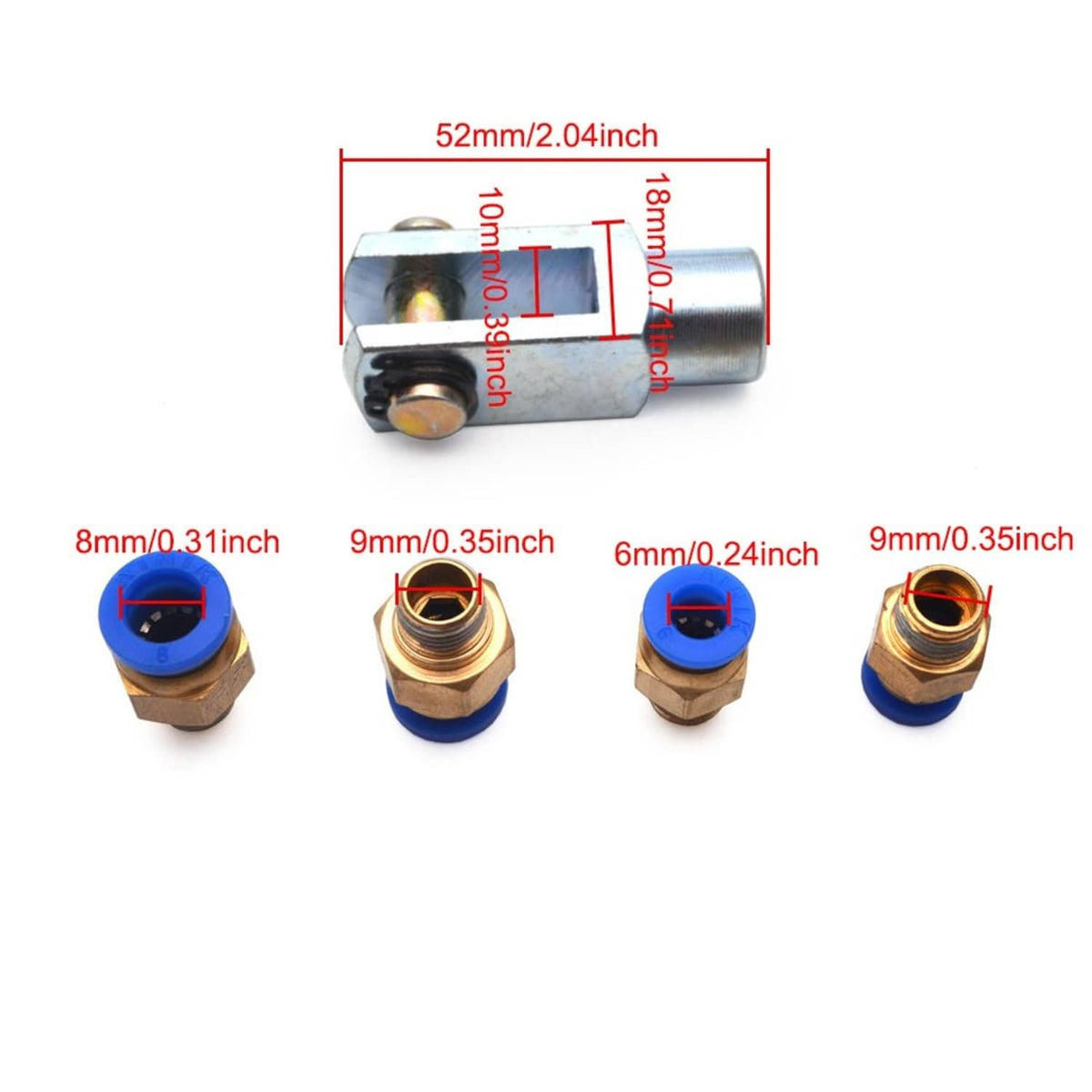

  • Cylinder end block with port fittings, blue push-in and brass fittings arranged for sizing.

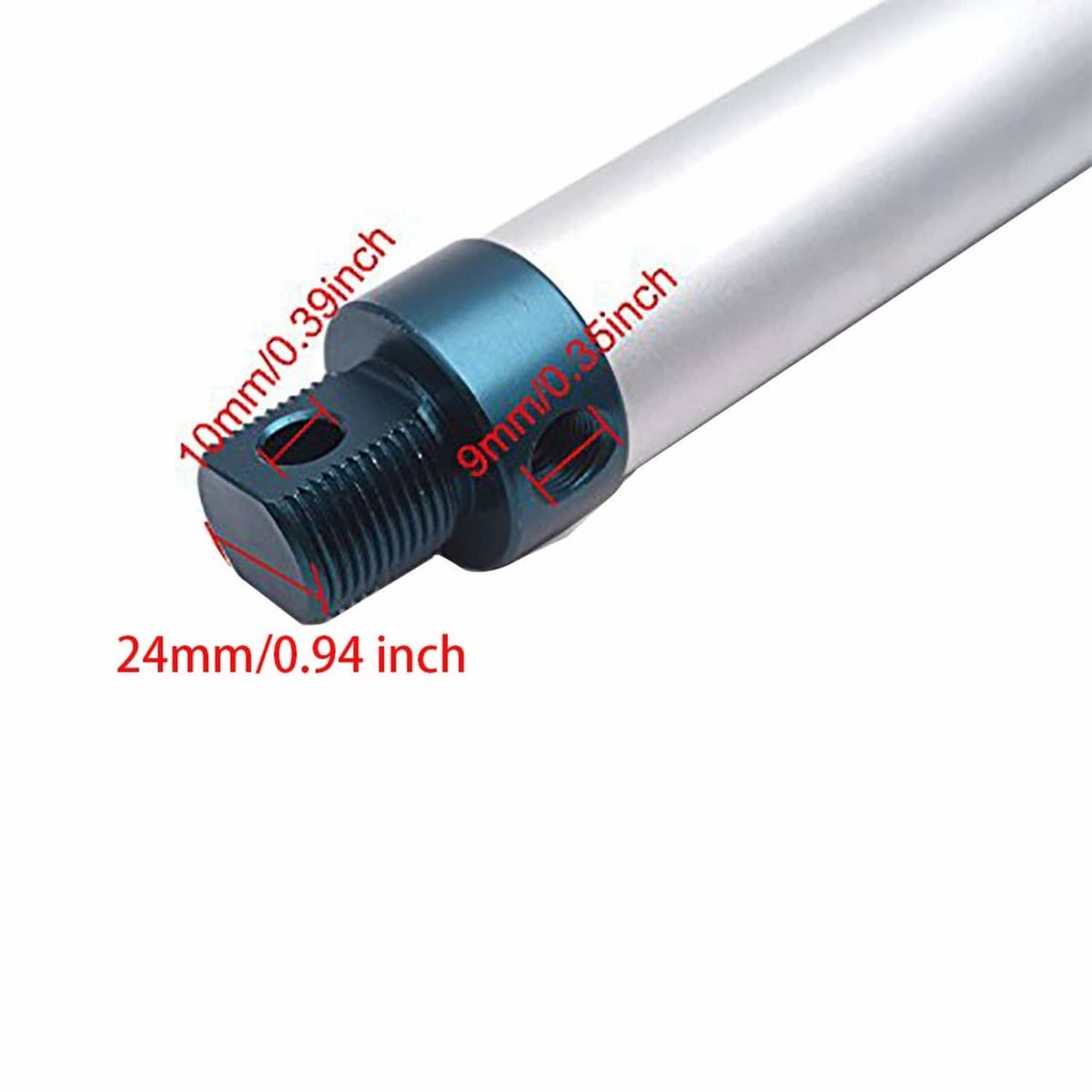

  • Pneumatic air cylinder close-up of threaded mounting section with dark blue collar.

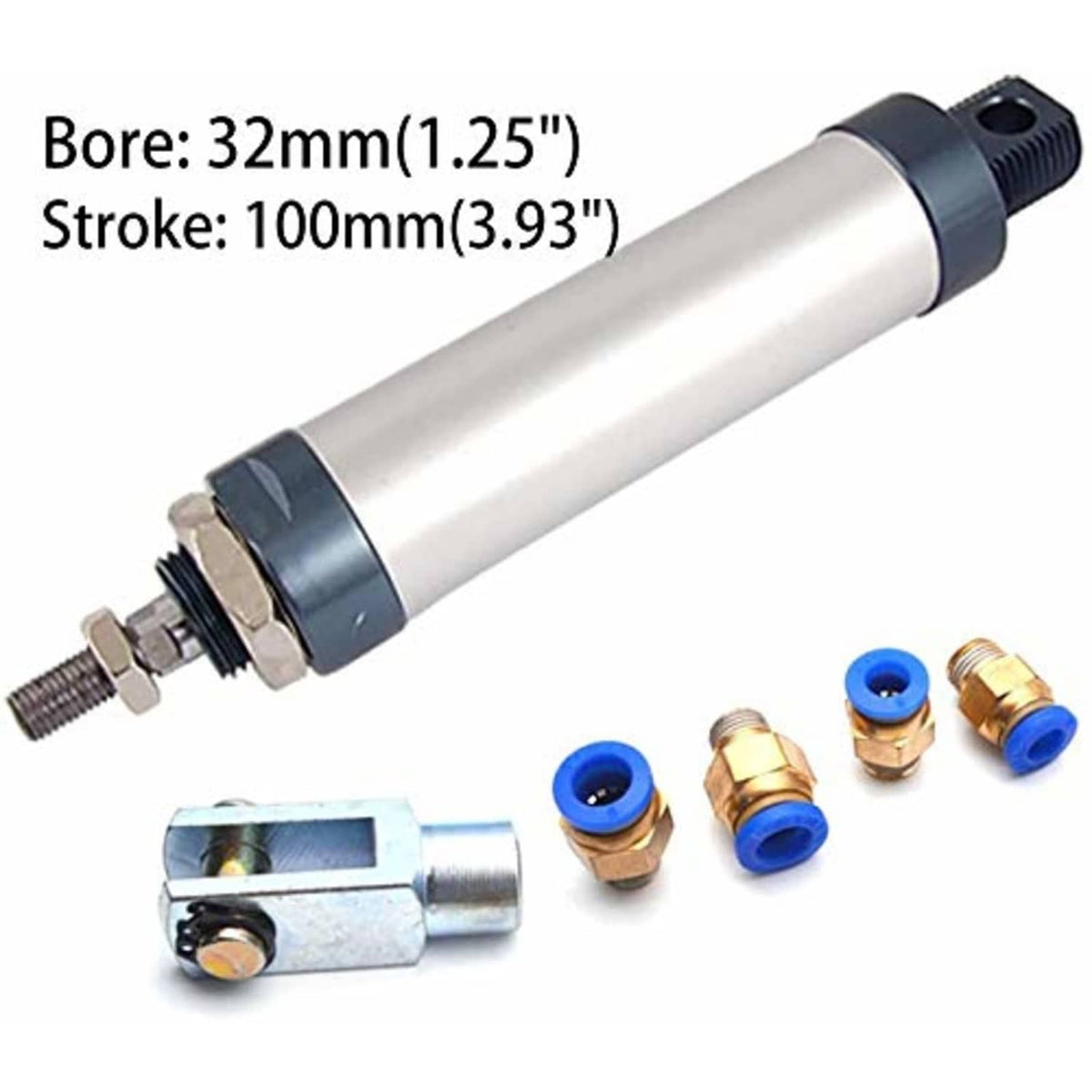

  • Pneumatic air cylinder assembly with single rod and included port fittings, full view.
  • Double-acting pneumatic air cylinder with mounting bracket, single rod, silver and dark blue.
  • Pneumatic air cylinder with rod end and port fittings, showing brass and blue connection seals.
  • Pneumatic cylinder rod end showing M10 piston-thread and M24 thread sleeve detail.
  • Cylinder end block with port fittings, blue push-in and brass fittings arranged for sizing.
  • Pneumatic air cylinder close-up of threaded mounting section with dark blue collar.
  • Pneumatic air cylinder assembly with single rod and included port fittings, full view.
MAL32x100 Pneumatic Air Cylinder 32mm Bore 100mm Stroke Double Acting Single Rod

MAL32x100 Pneumatic Air Cylinder 32mm Bore 100mm Stroke Double Acting Single Rod

$73.69
FREE, Fast Shipping on all orders!

Product Overview

The MAL32x100 pneumatic air cylinder is a double-acting, single-rod cylinder designed for linear movement in pneumatic systems. It features a 32mm bore and a 100mm stroke for applications requiring this specified cylinder size and travel.

Key Features

  • Pneumatic air cylinder
  • Double-acting operation
  • Single-rod design
  • 32mm bore
  • 100mm stroke

Product Details

  • Product Type: Pneumatic air cylinder
  • Model: MAL32x100
  • Bore: 32mm
  • Stroke: 100mm
  • Operation: Double acting
  • Rod Configuration: Single rod

Frequently Asked Questions

Q: What is the normal purpose of this pneumatic air cylinder? A: It provides controlled linear movement in pneumatic equipment and systems using double-acting operation.

Q: What specifications should be checked before purchase? A: Confirm the MAL32x100 model, 32mm bore, 100mm stroke, double-acting operation, and single-rod configuration against your application.
