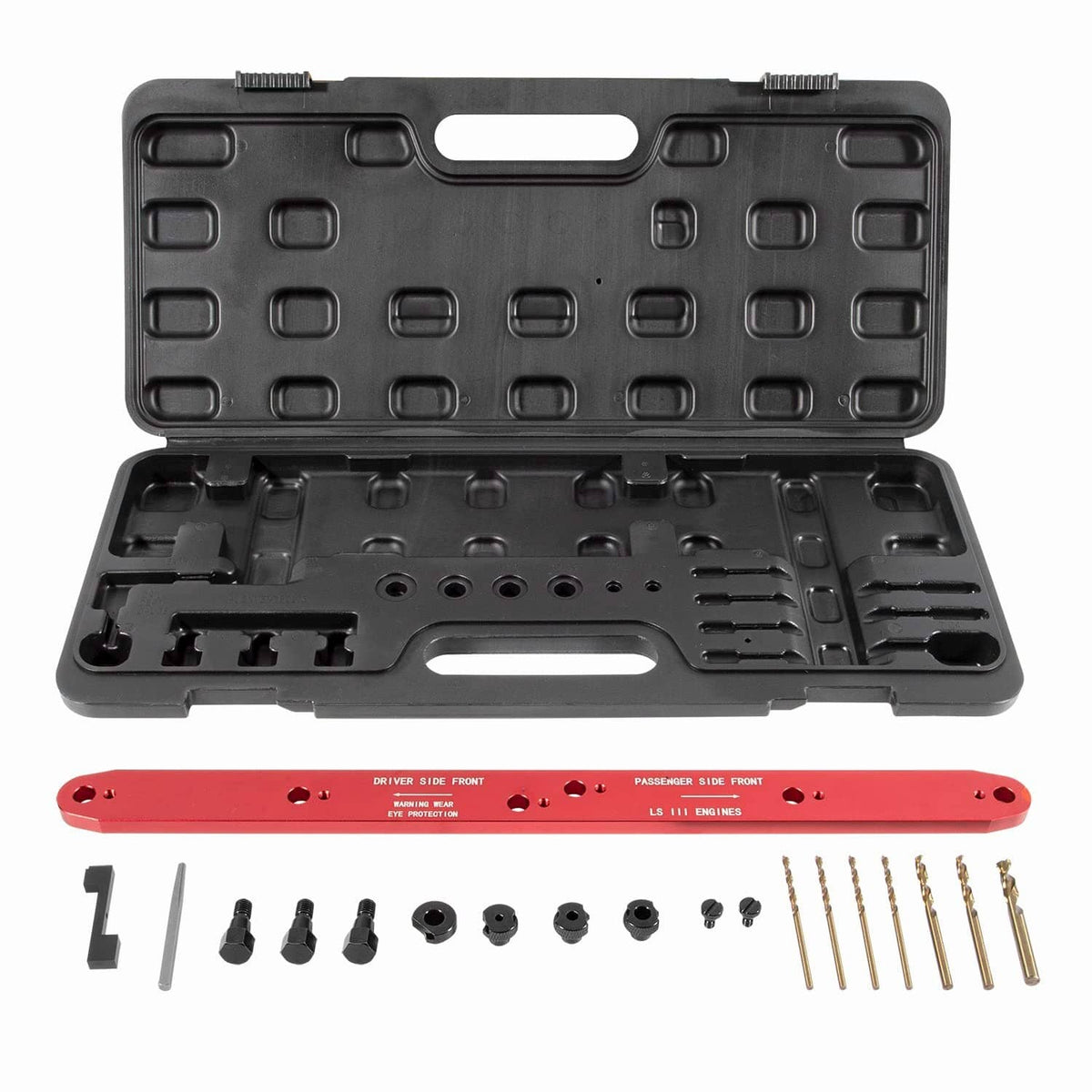

Manifold drill template kit in black hard case with red guide bar and assorted parts

71400 Manifold Drill Template for GM /Chevy LSIII 4.8L, 5.3L & 6.0L Motors 99-07

$186.99
Skip to product information
Manifold drill template kit in black hard case with red guide bar and assorted parts
  • Manifold drill template kit in black hard case with red guide bar and assorted parts

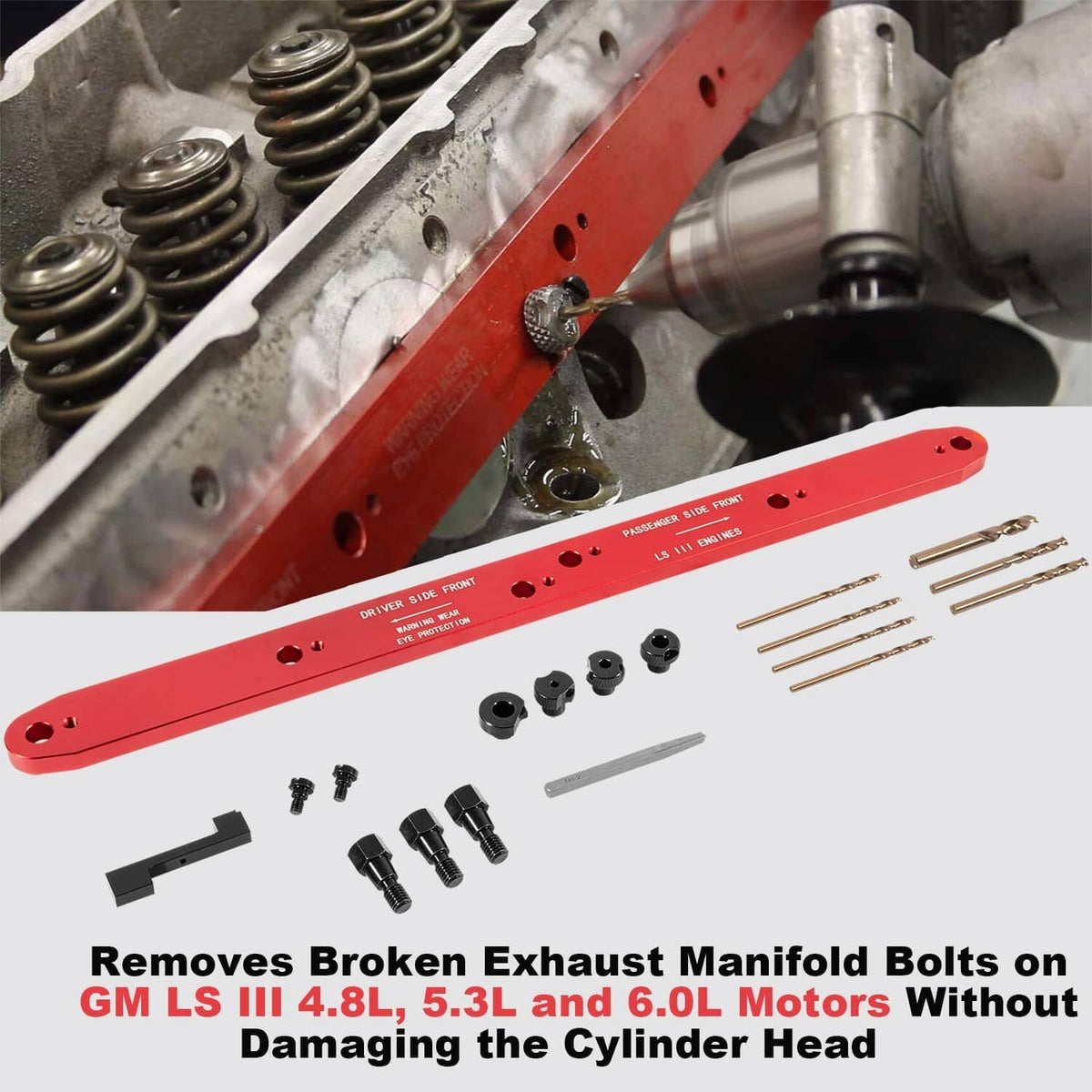

  • Manifold drill template guide bar with drill bits and fasteners for exhaust manifold bolts
  • Manifold drill template kit shown with black case and red template guide bar

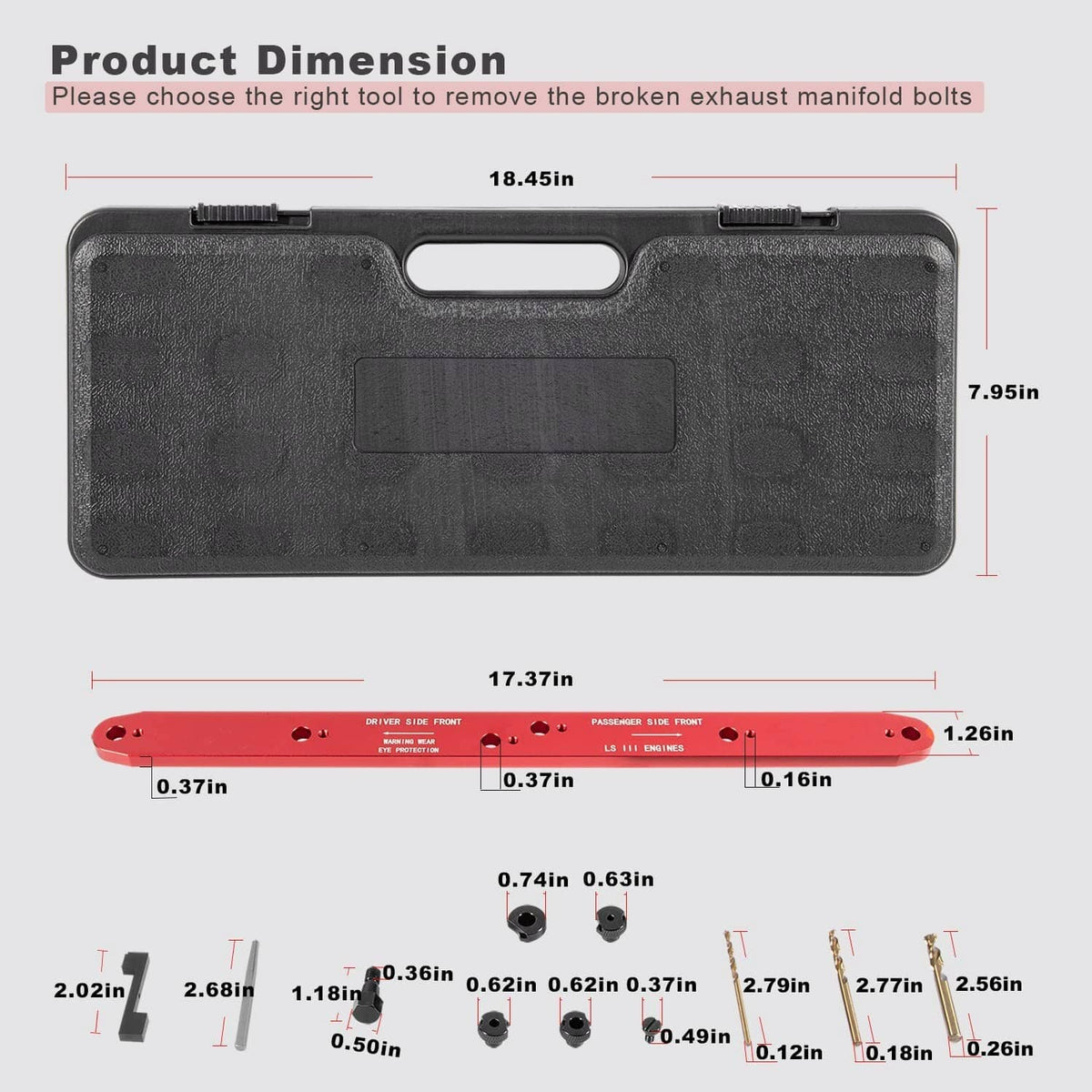

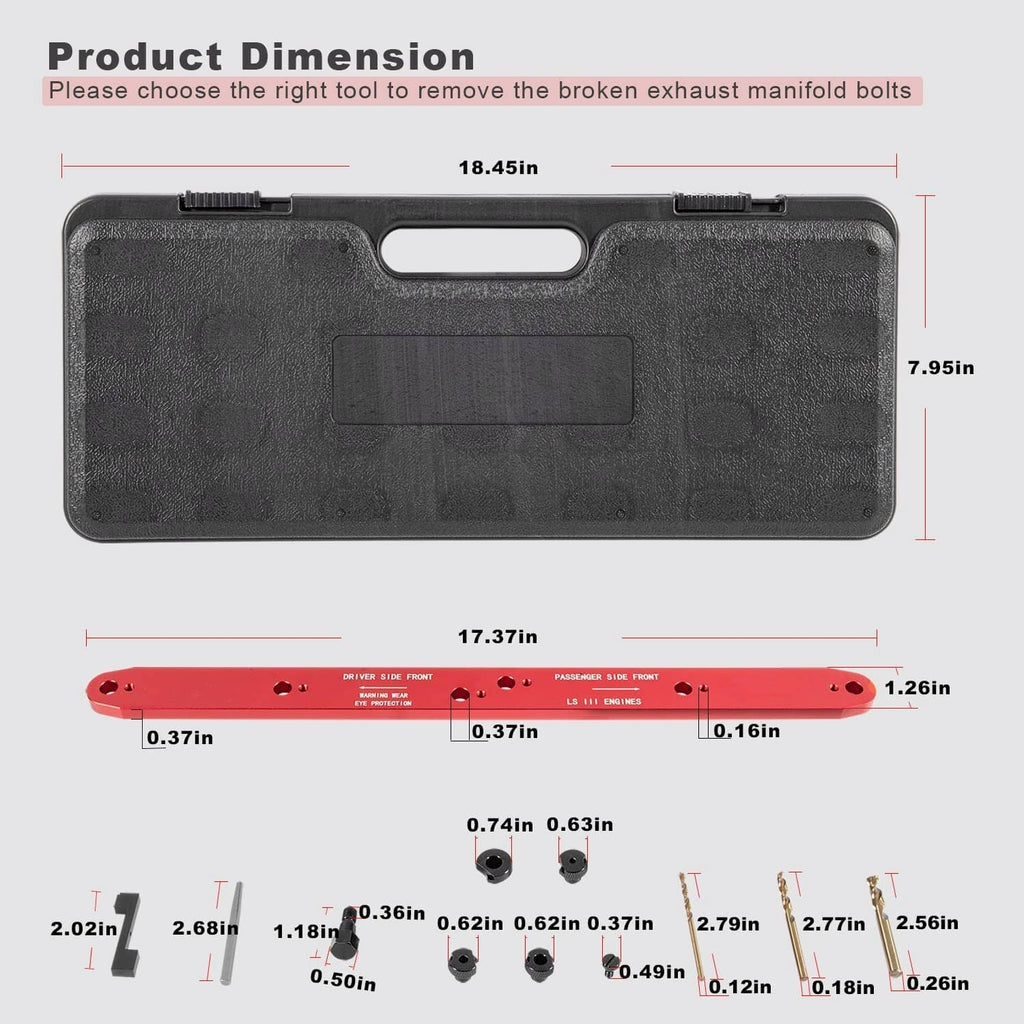

  • Manifold drill template kit dimension diagram showing black case and red template bar

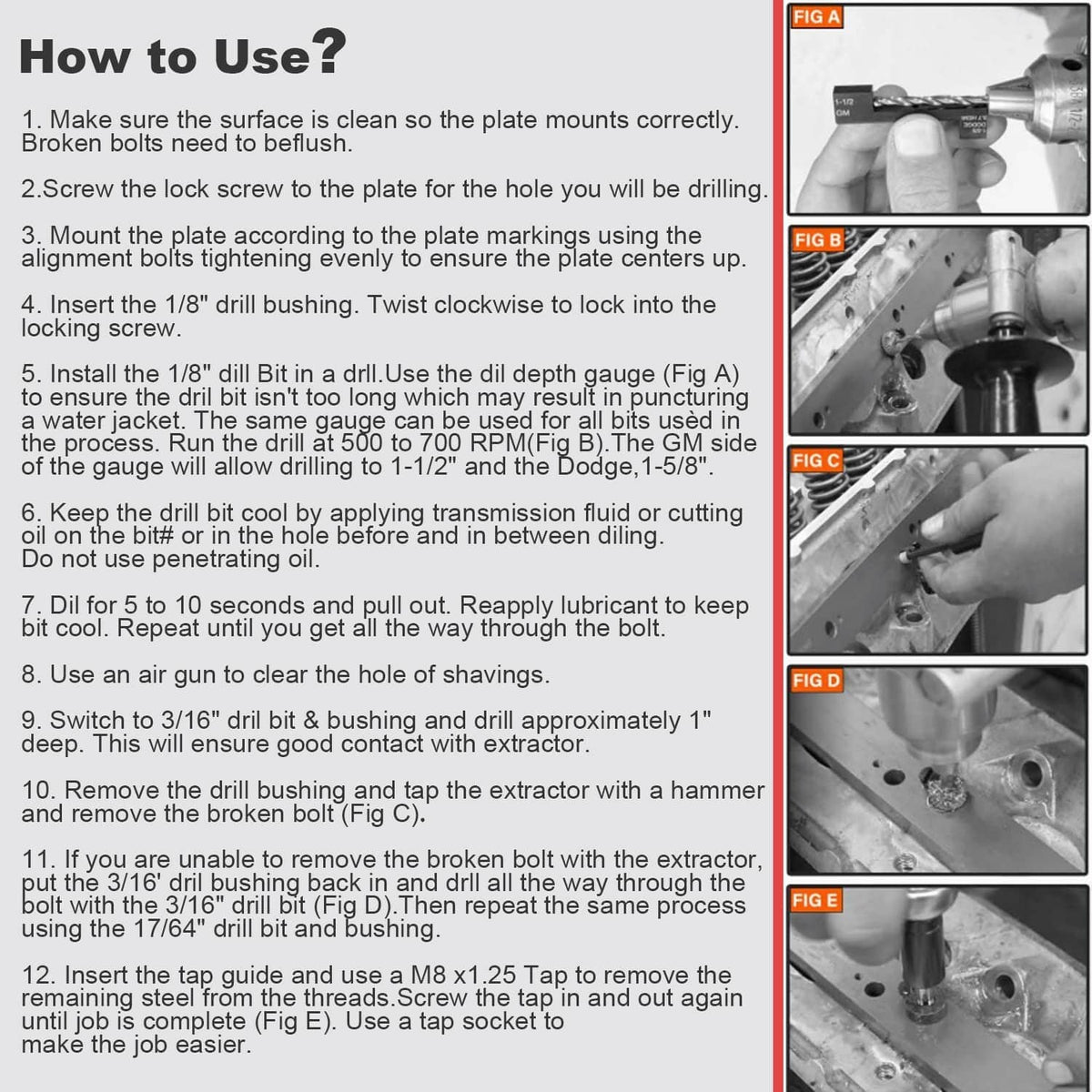

  • Manifold drill template kit instructions panel with step-by-step drilling guidance photos

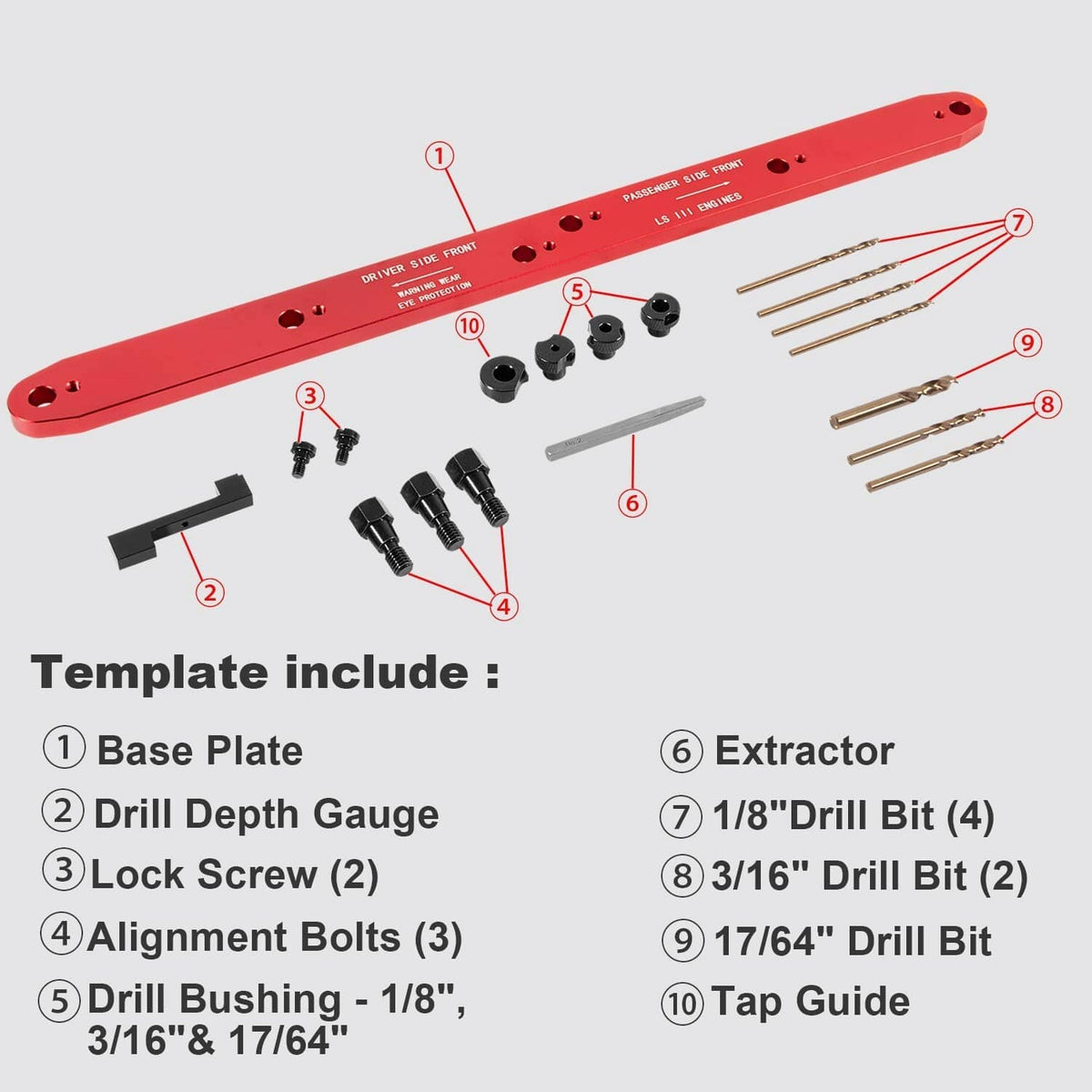

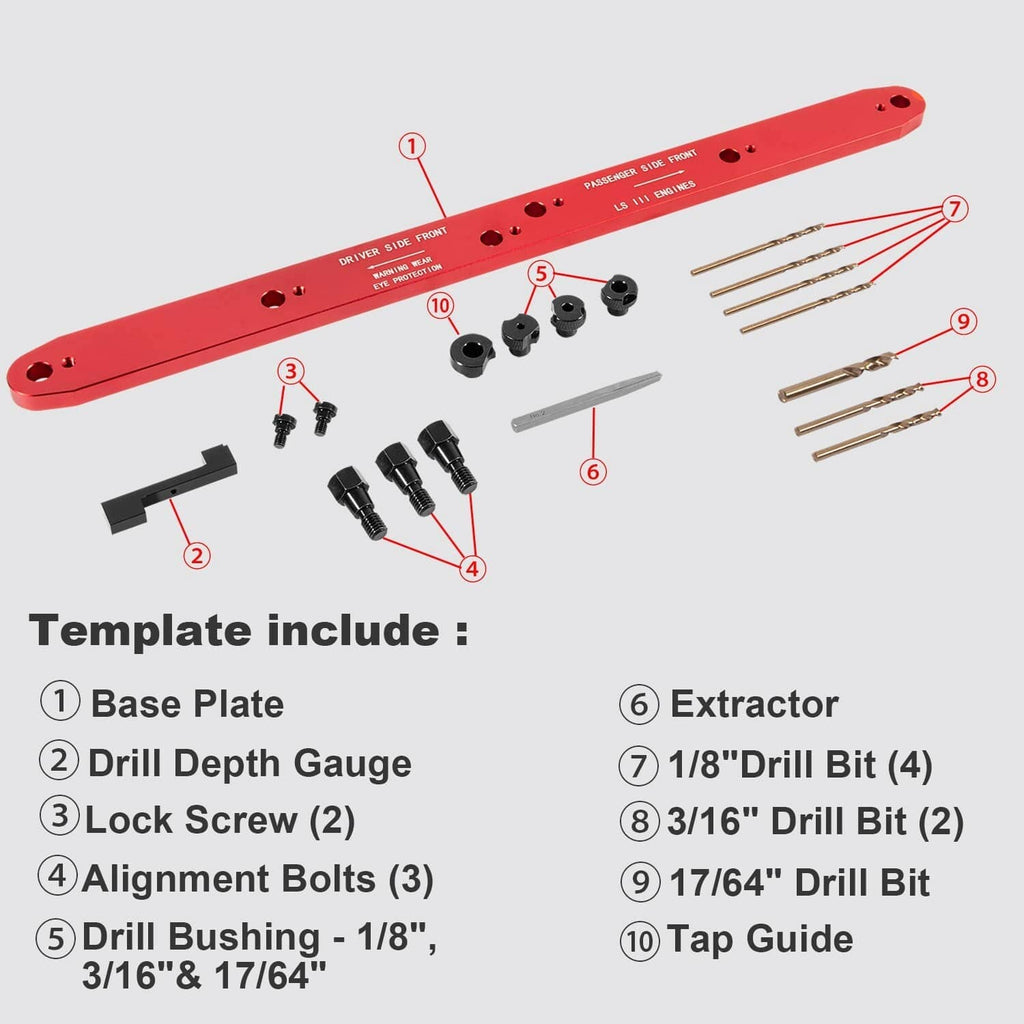

  • Manifold drill template parts diagram with red base plate, drill depth gauge, and bits

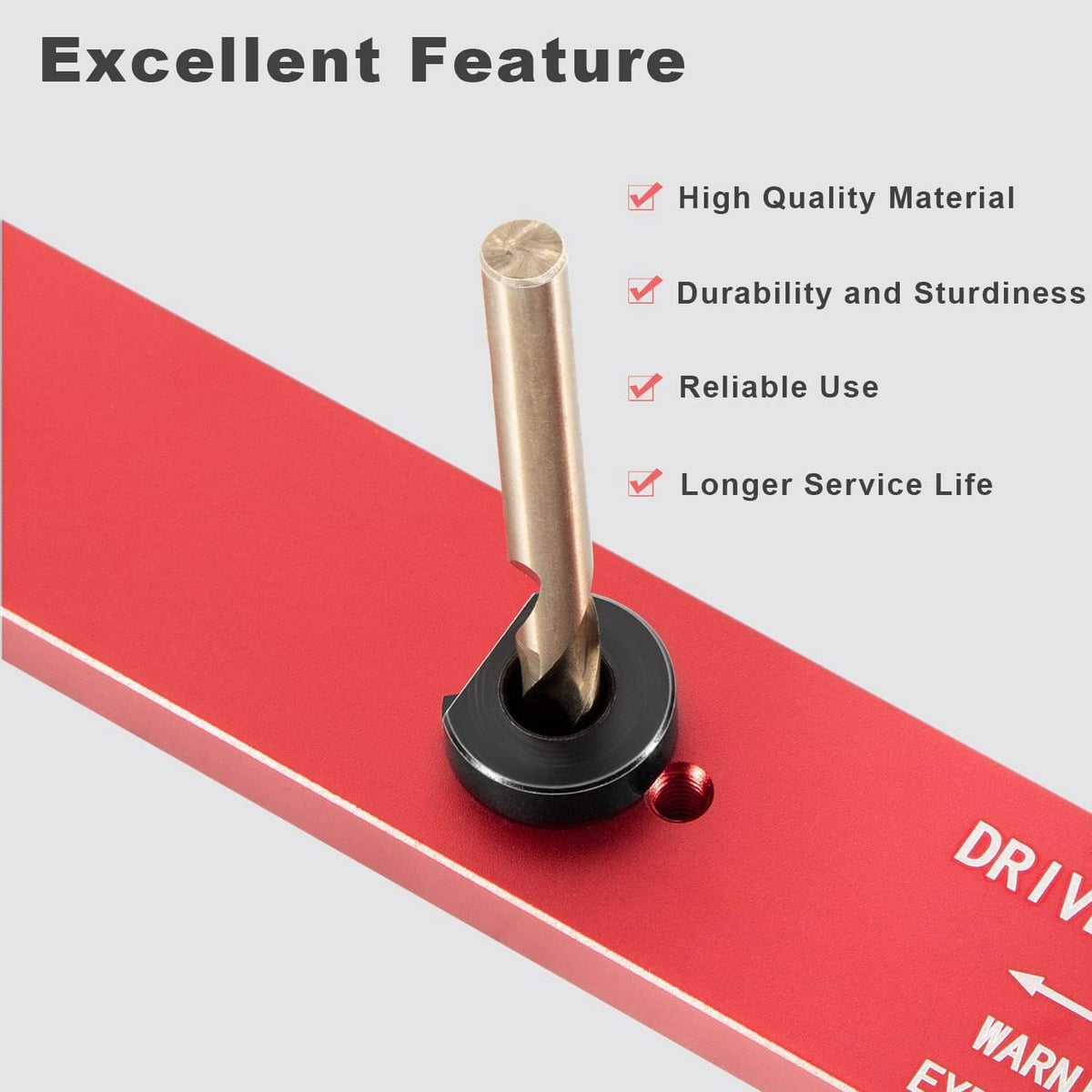

  • Close-up of drill bit seated in black base on red manifold drill template guide
  • Manifold drill template kit in black hard case with red guide bar and assorted parts
  • Manifold drill template guide bar with drill bits and fasteners for exhaust manifold bolts
  • Manifold drill template kit shown with black case and red template guide bar
  • Manifold drill template kit dimension diagram showing black case and red template bar
  • Manifold drill template kit instructions panel with step-by-step drilling guidance photos
  • Manifold drill template parts diagram with red base plate, drill depth gauge, and bits
  • Close-up of drill bit seated in black base on red manifold drill template guide
71400 Manifold Drill Template for GM /Chevy LSIII 4.8L, 5.3L & 6.0L Motors 99-07

71400 Manifold Drill Template for GM /Chevy LSIII 4.8L, 5.3L & 6.0L Motors 99-07

$186.99
FREE, Fast Shipping on all orders!

Product Overview

This 71400 Manifold Drill Template is a specialty tool designed for use with GM and Chevy LSIII 4.8L, 5.3L and 6.0L motors from 1999 to 2007. It is intended to help guide the drilling process during manifold-related service work on these engine applications. The template carries the 71400 part number and covers the stated displacement and year range only.

Key Features

  • 71400 manifold drill template
  • For GM and Chevy LSIII 4.8L, 5.3L and 6.0L motors
  • Covers the 1999 to 2007 model year range as stated
  • Designed as a guide tool for manifold drilling tasks
  • Part number 71400 provided for identification

Compatibility & Fitment

  • For GM LSIII 4.8L motors 1999 to 2007
  • For GM LSIII 5.3L motors 1999 to 2007
  • For GM LSIII 6.0L motors 1999 to 2007
  • For Chevy LSIII 4.8L, 5.3L and 6.0L motors 1999 to 2007

Product Details

  • Product Type: Manifold drill template
  • Part Number: 71400
  • Model Application: GM and Chevy LSIII 4.8L, 5.3L and 6.0L motors
  • Year Range: 1999 to 2007

Frequently Asked Questions

Q: What is the purpose of a manifold drill template? A: It is used as a guide to help position and control the drill during manifold-related drilling work on the supported engine applications.

Q: How do I verify this template fits my engine? A: Confirm your engine displacement is 4.8L, 5.3L or 6.0L, that it is an LSIII motor, and that the model year falls within the 1999 to 2007 range, and check the 71400 part number before purchase.

This is a third-party accessory for the referenced application and is not manufactured, sponsored, or endorsed by the referenced trademark owner. Verify the complete model and size before purchase.
