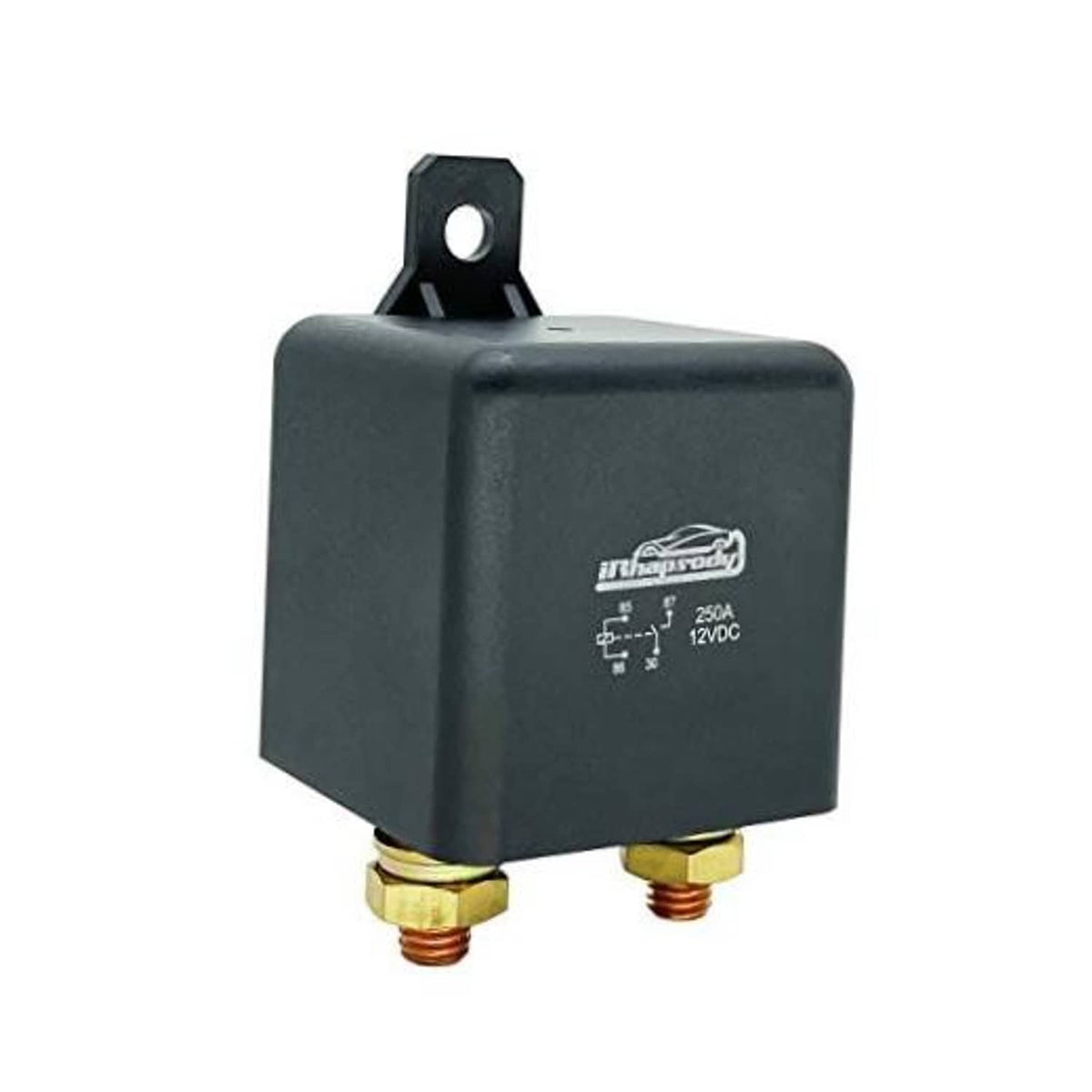

  • 12V 4-pin high-power relay with black case and two brass screw terminals on front

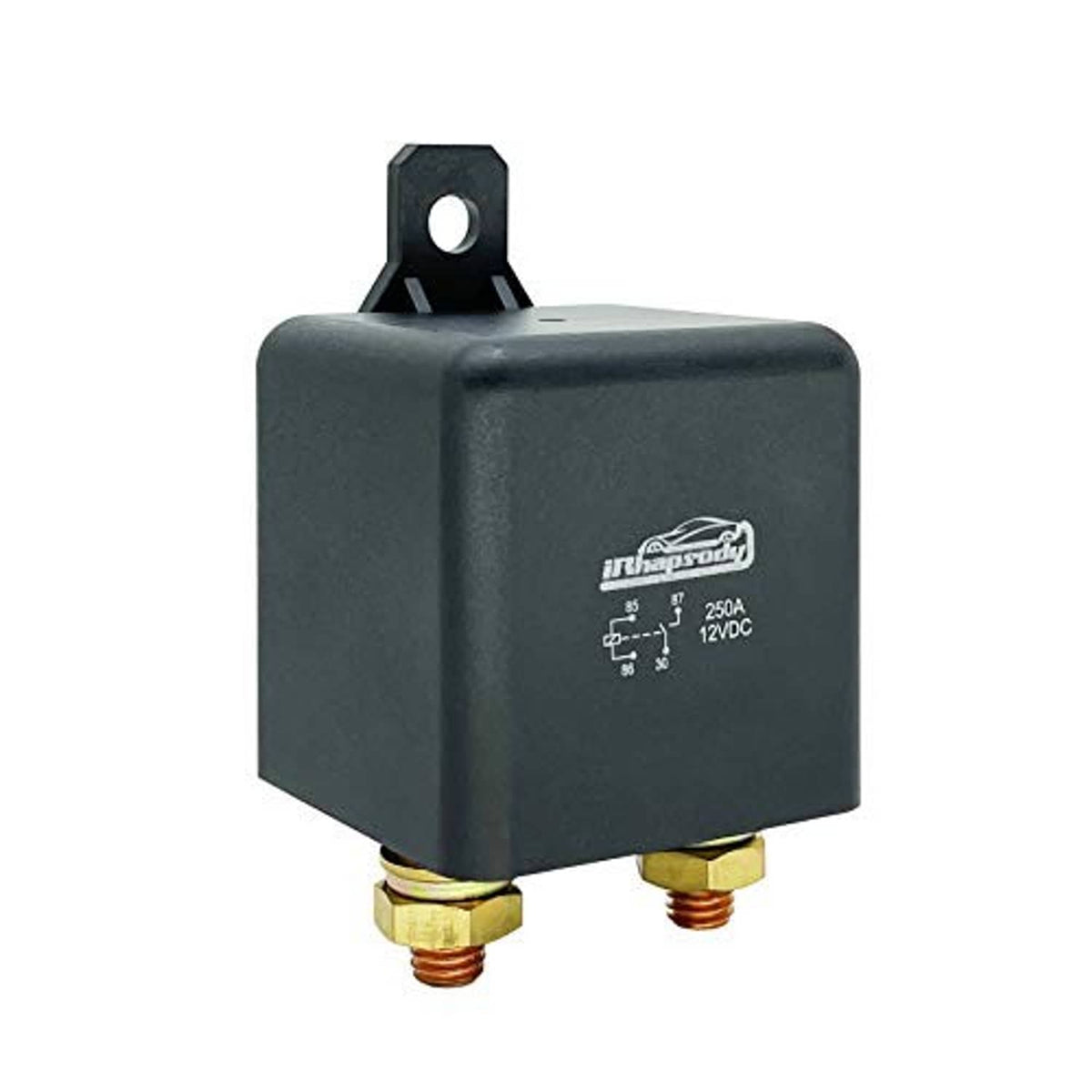

  • 12V 4-pin high-power relay with black housing and mounting tab on top

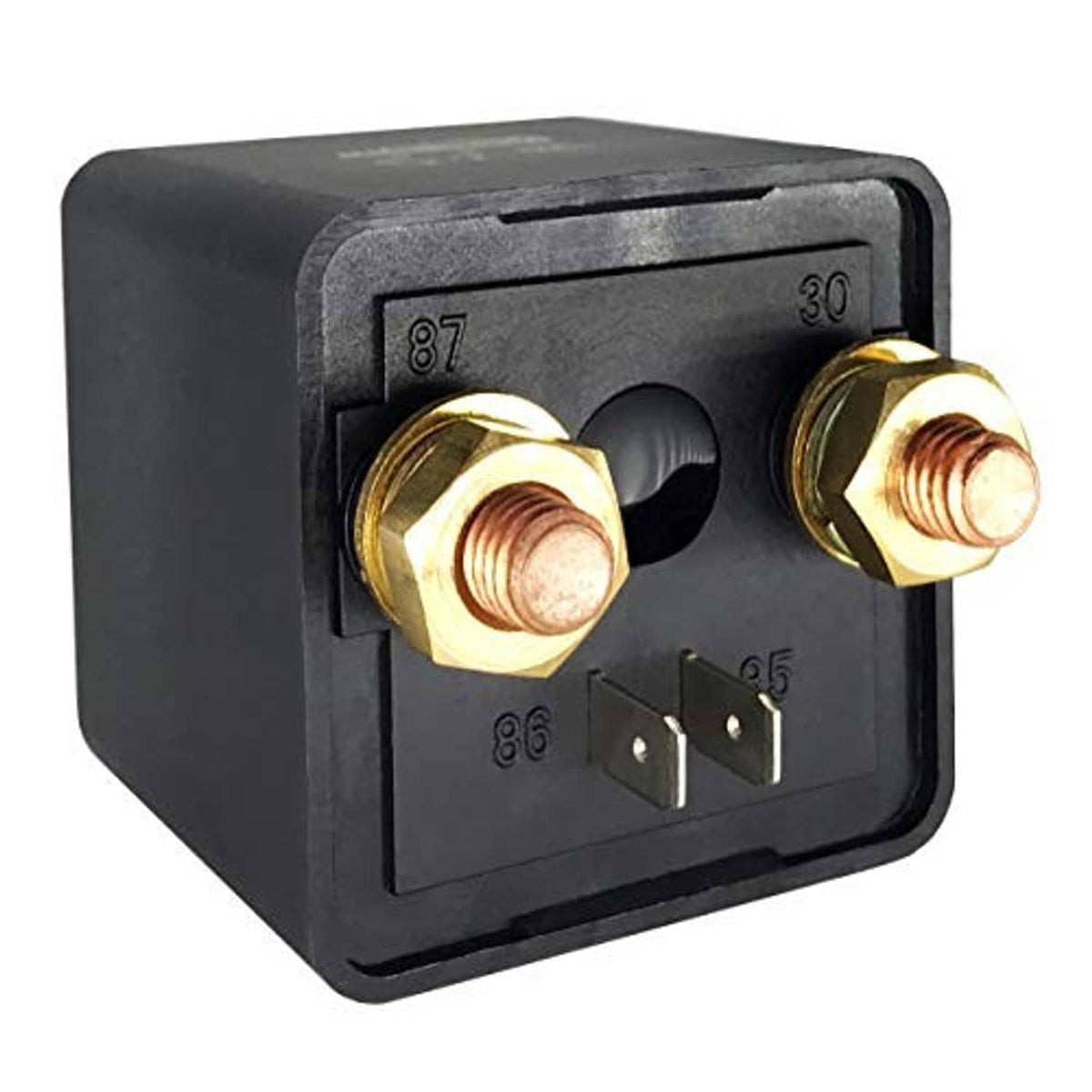

  • 12V 4-pin relay close-up of black terminal cover with two brass screw studs

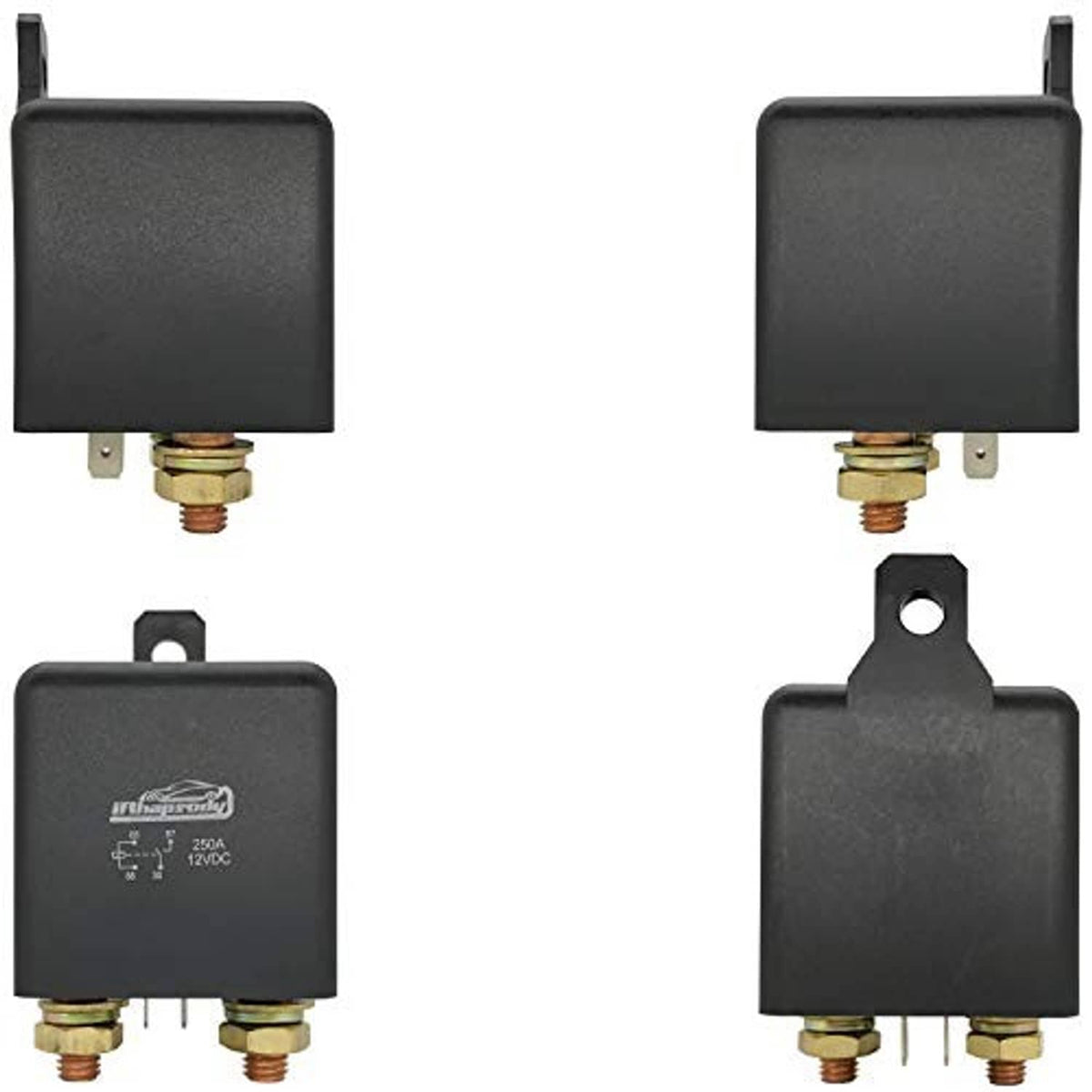

  • 12V 4-pin relay set showing multiple views of black housing and brass terminals

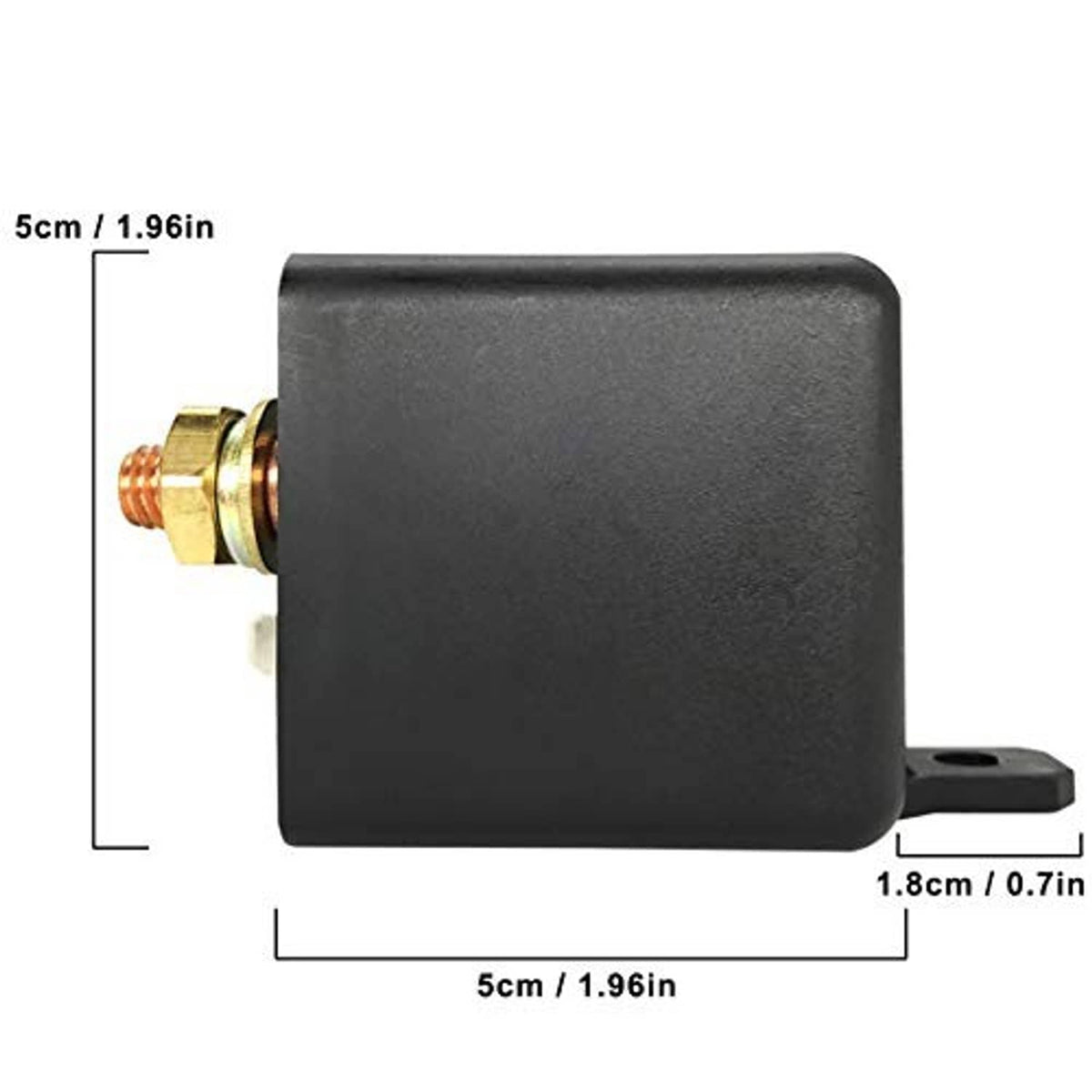

  • 12V 4-pin relay with black body and brass terminals; compact rectangular mounting

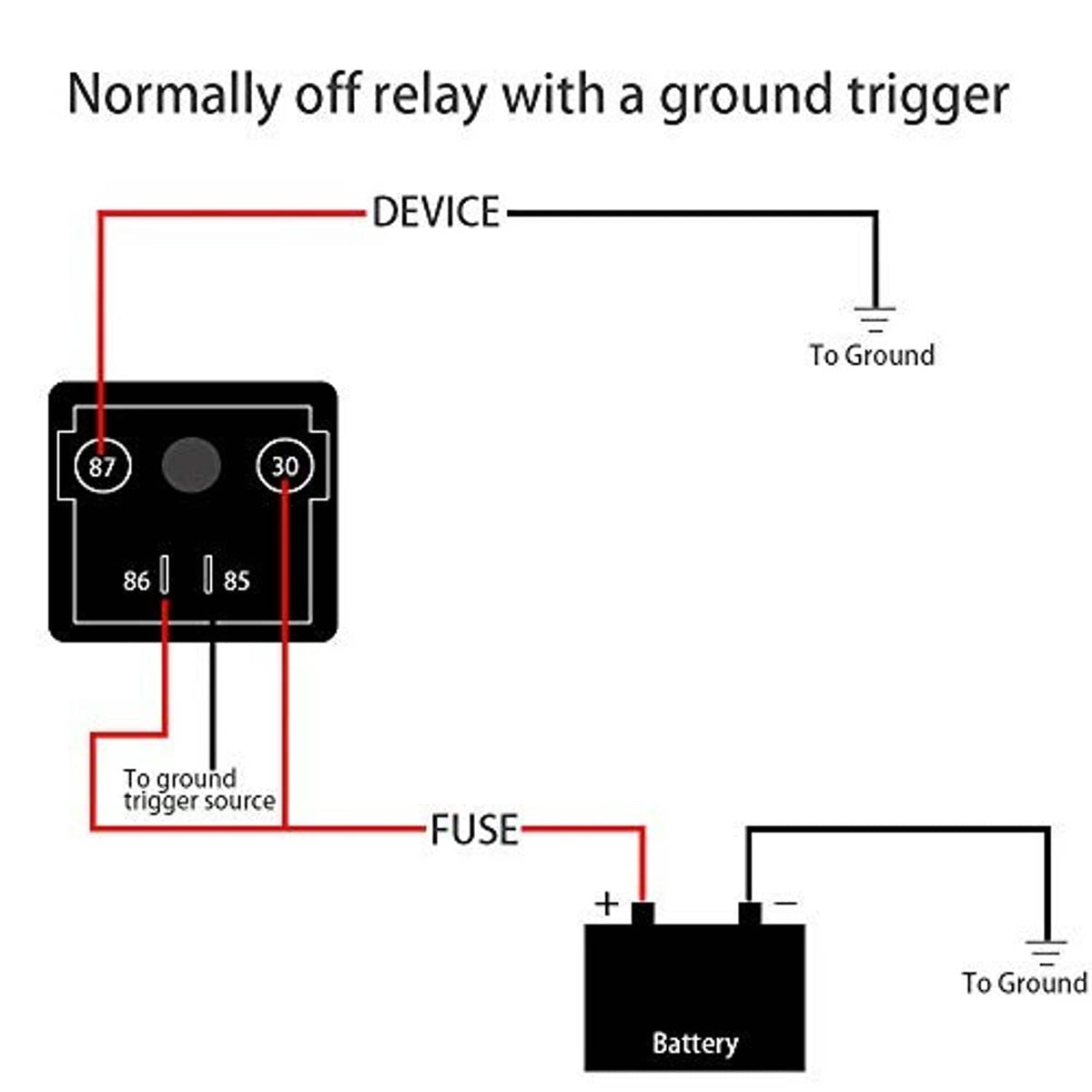

  • Normally-off relay wiring diagram with ground trigger and fuse and battery connections

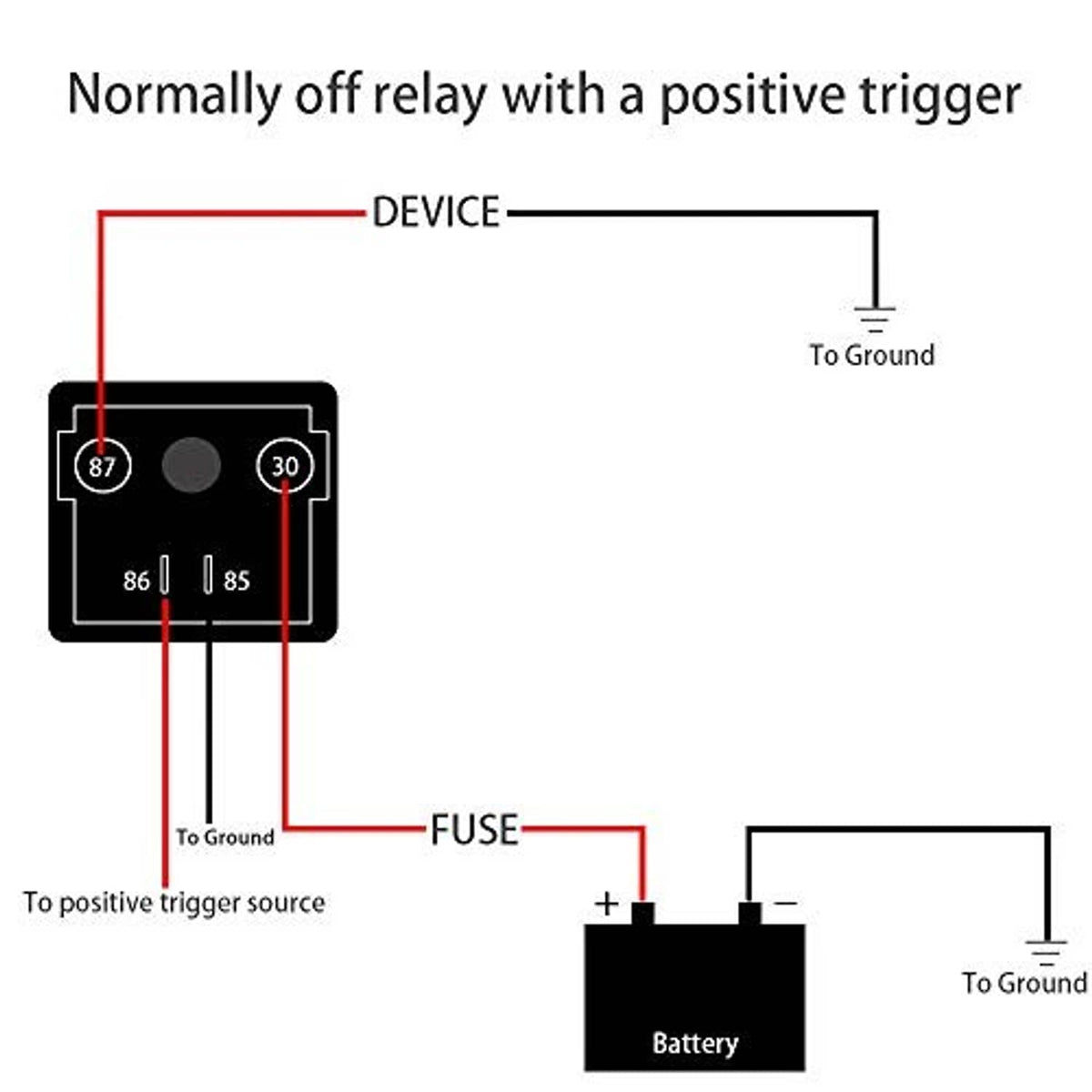

  • Normally-off relay wiring diagram with positive trigger, fuse, and battery ground connections
  • 12V 4-pin high-power relay with black case and two brass screw terminals on front
  • 12V 4-pin high-power relay with black housing and mounting tab on top
  • 12V 4-pin relay close-up of black terminal cover with two brass screw studs
  • 12V 4-pin relay set showing multiple views of black housing and brass terminals
  • 12V 4-pin relay with black body and brass terminals; compact rectangular mounting
  • Normally-off relay wiring diagram with ground trigger and fuse and battery connections
  • Normally-off relay wiring diagram with positive trigger, fuse, and battery ground connections
250A Relay, 12VDC Continuous Duty SPST 4-pin High Power Relay 12v-250a-4pin

250A Relay, 12VDC Continuous Duty SPST 4-pin High Power Relay 12v-250a-4pin

$54.19
FREE, Fast Shipping on all orders!

Product Overview

This 250A relay is a 12VDC continuous-duty SPST relay with a 4-pin configuration for switching high-power electrical circuits. Its 12v-250a-4pin designation identifies the voltage, current rating, and pin arrangement.

Key Features

  • 250A current rating
  • 12VDC operating voltage
  • Continuous-duty design
  • SPST switching configuration
  • 4-pin layout

Product Details

  • Product Type: Relay
  • Current Rating: 250A
  • Voltage: 12VDC
  • Duty: Continuous duty
  • Configuration: SPST
  • Pin Count: 4-pin
  • Designation: 12v-250a-4pin

Frequently Asked Questions

Q: What is this relay used for? A: It is used to switch a high-power electrical circuit using a 12VDC control circuit.

Q: What specifications should be checked before use? A: Confirm that the application matches the 12VDC voltage, 250A rating, SPST configuration, and 4-pin layout.
