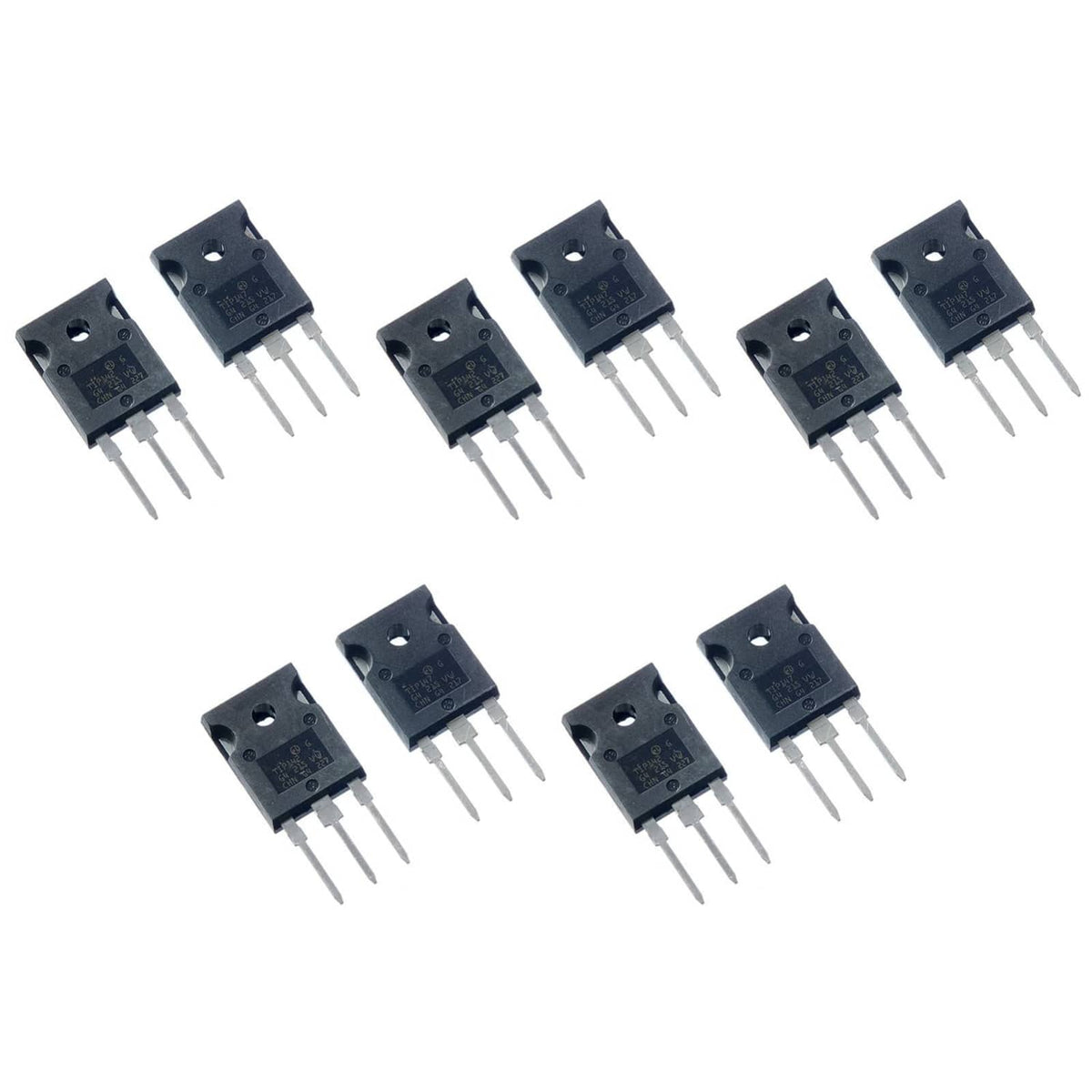

  • Set of black TO-3P transistors with three white leads each, multiple units shown

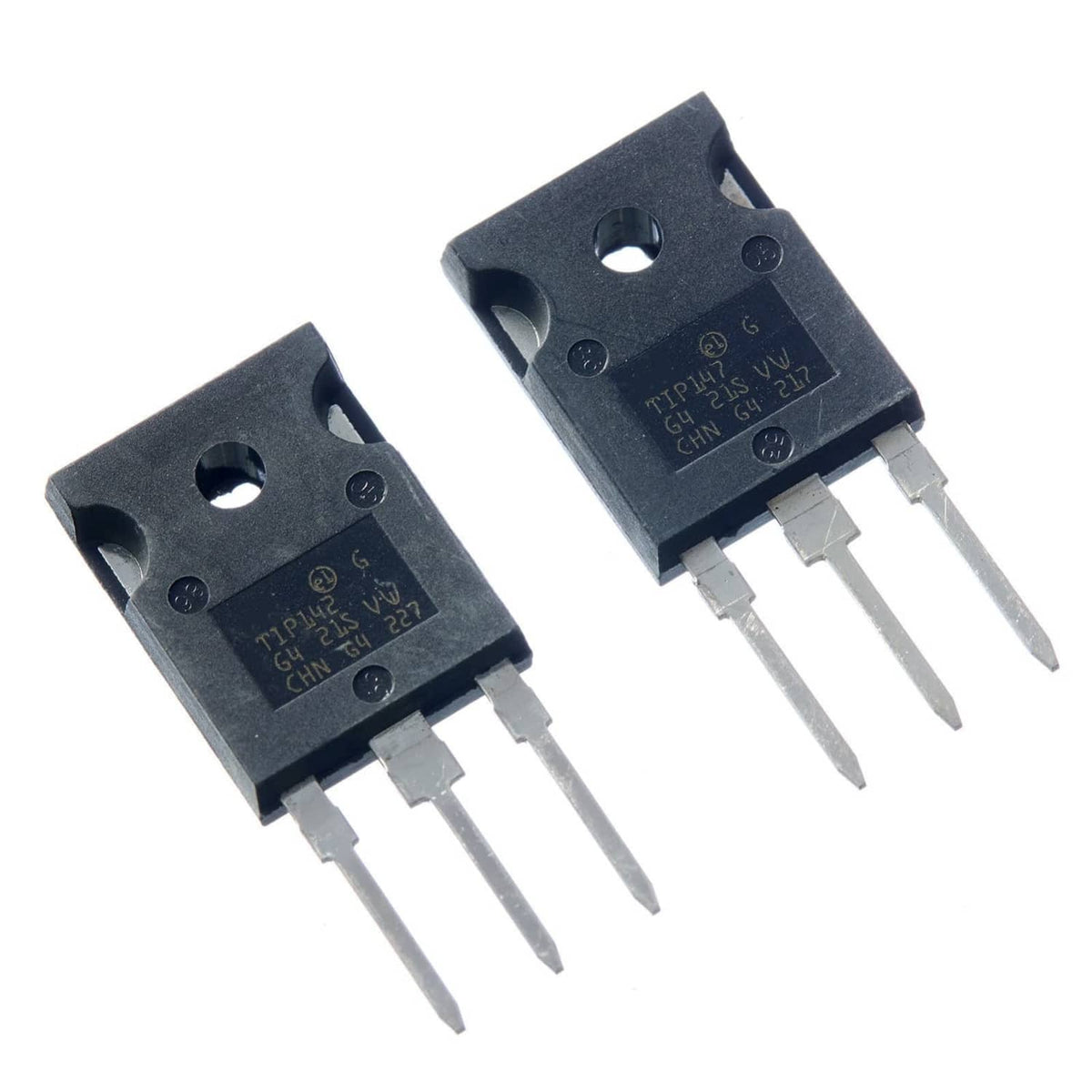

  • Two black TO-3P transistor packages with three white leads and printed markings on top

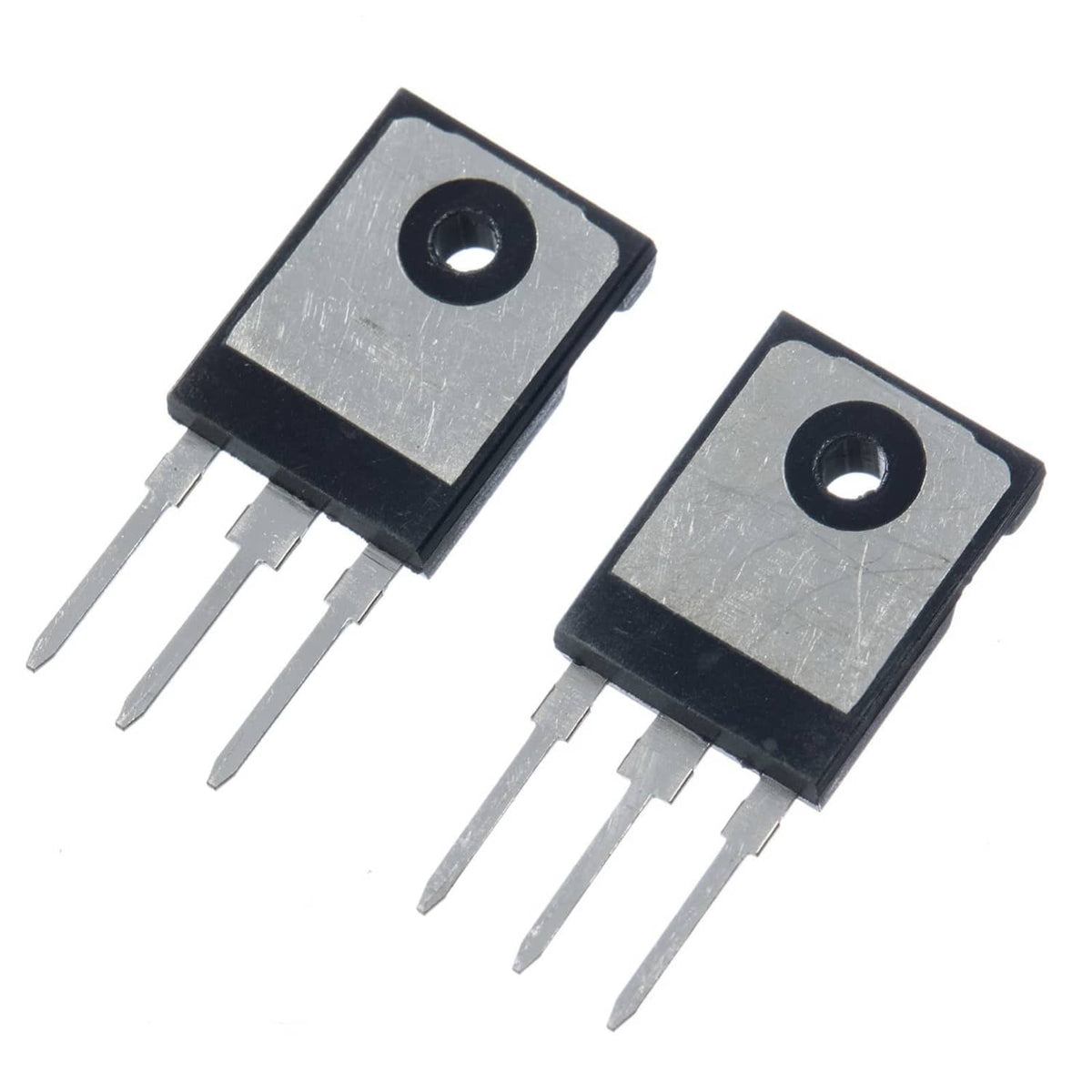

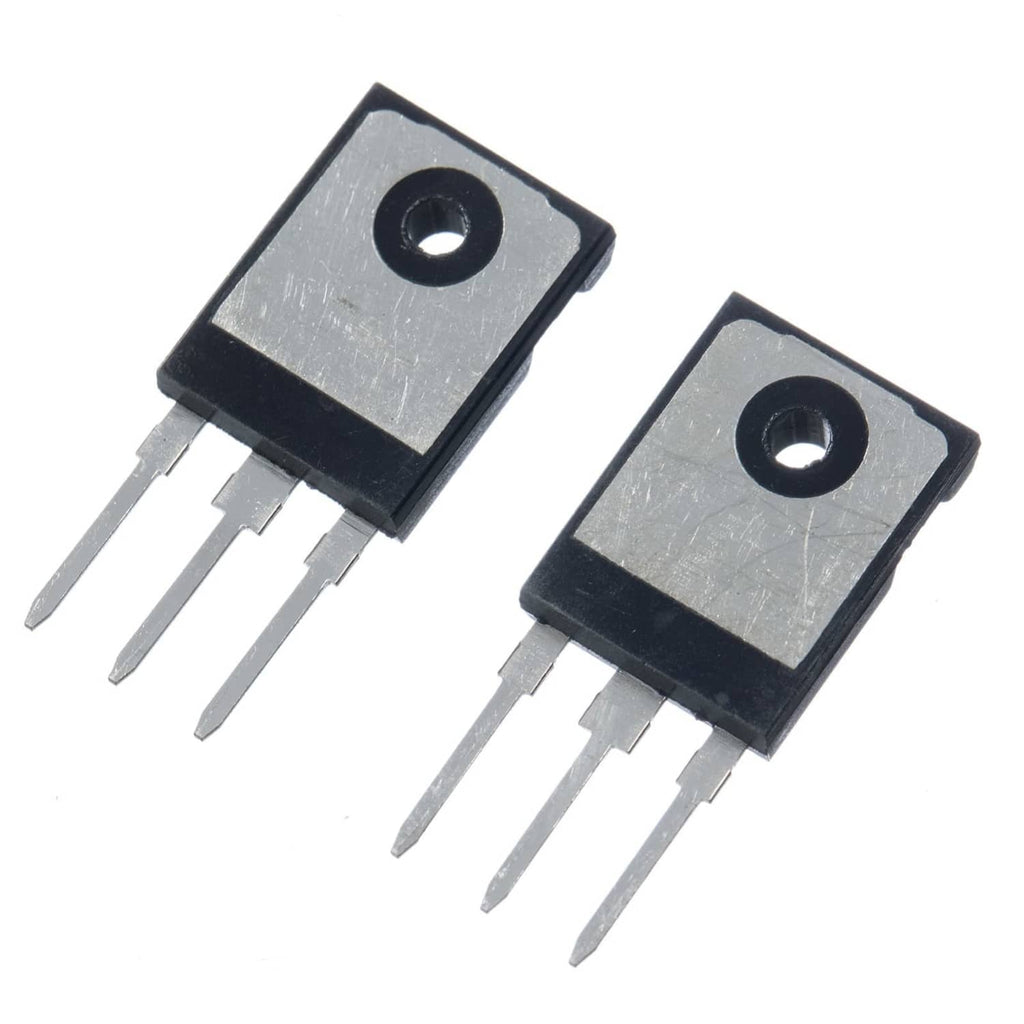

  • Two black TO-3P transistor packages shown from the top with three lead pins

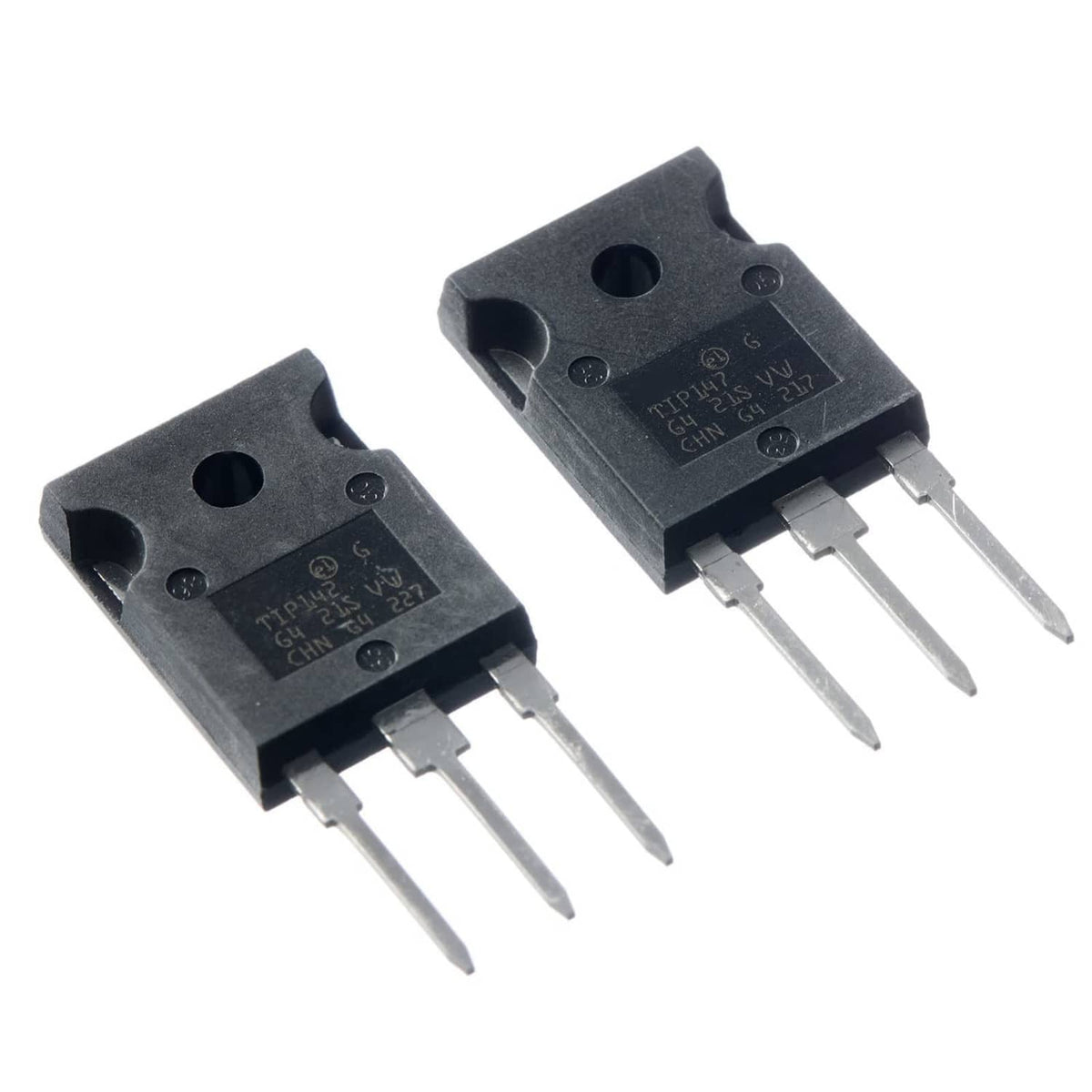

  • Pair of black TO-3P transistors at an angle with three white leads each

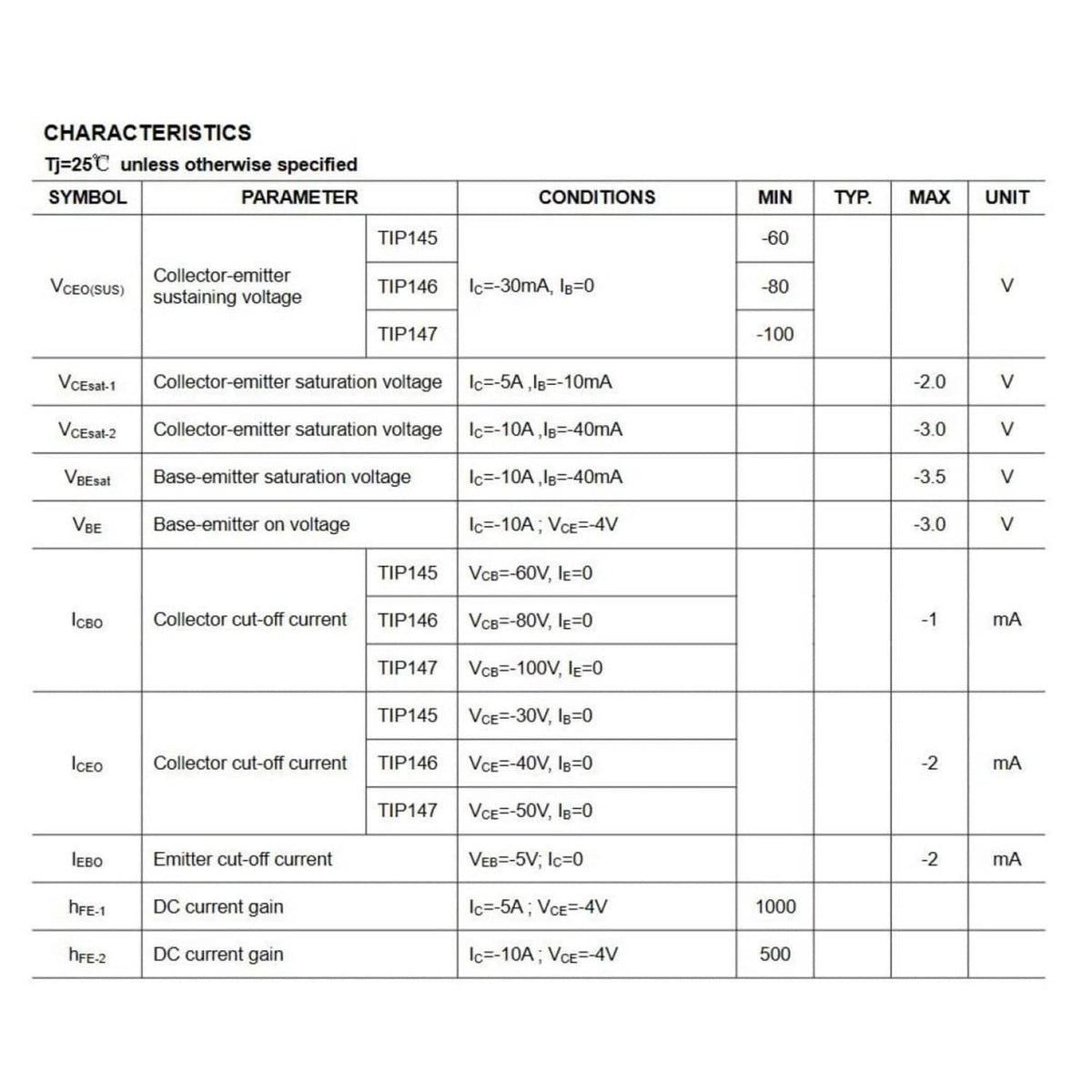

  • Transistor characteristics table with electrical parameters and min, typ, max columns

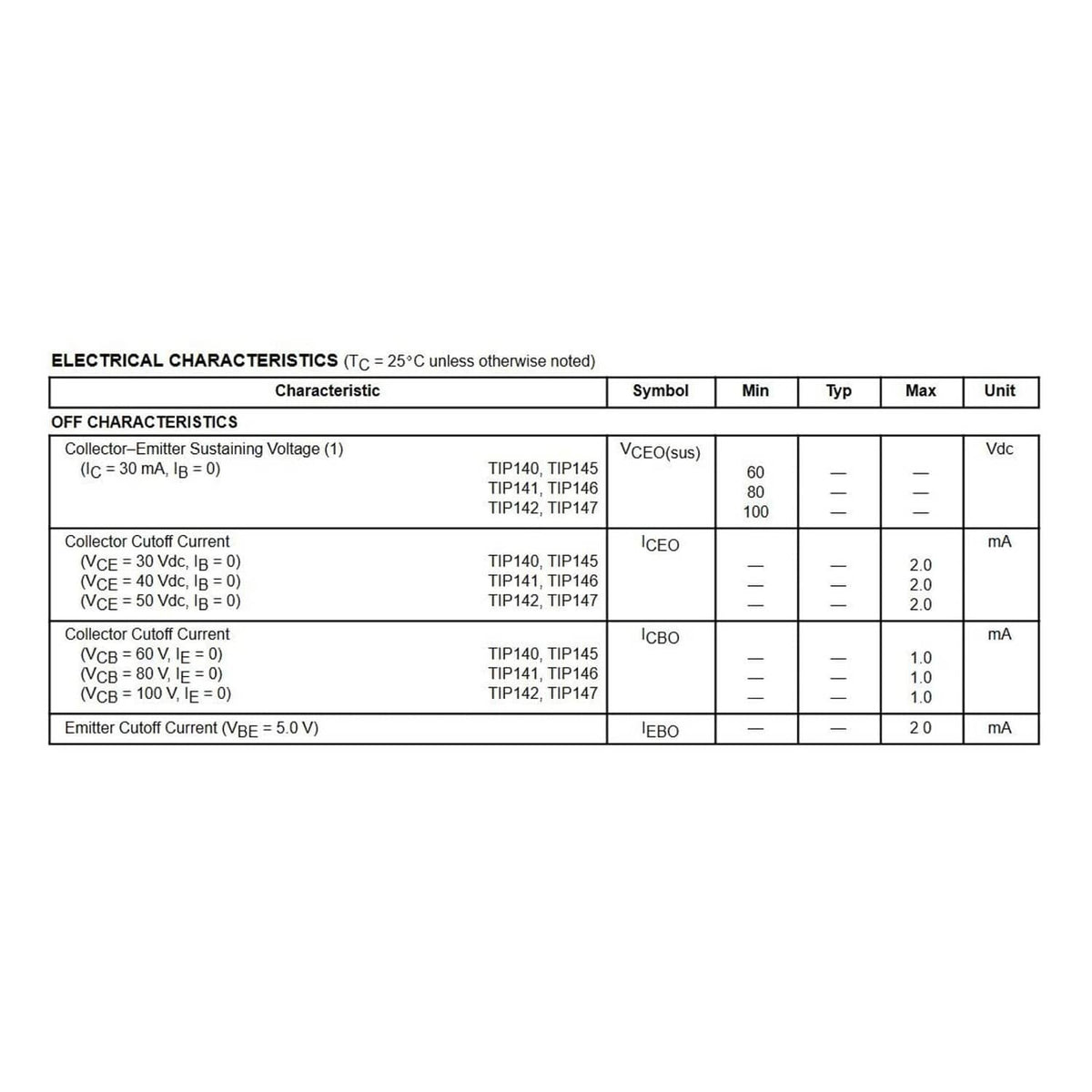

  • Electrical characteristics table for transistors with OFF and ON parameter limits

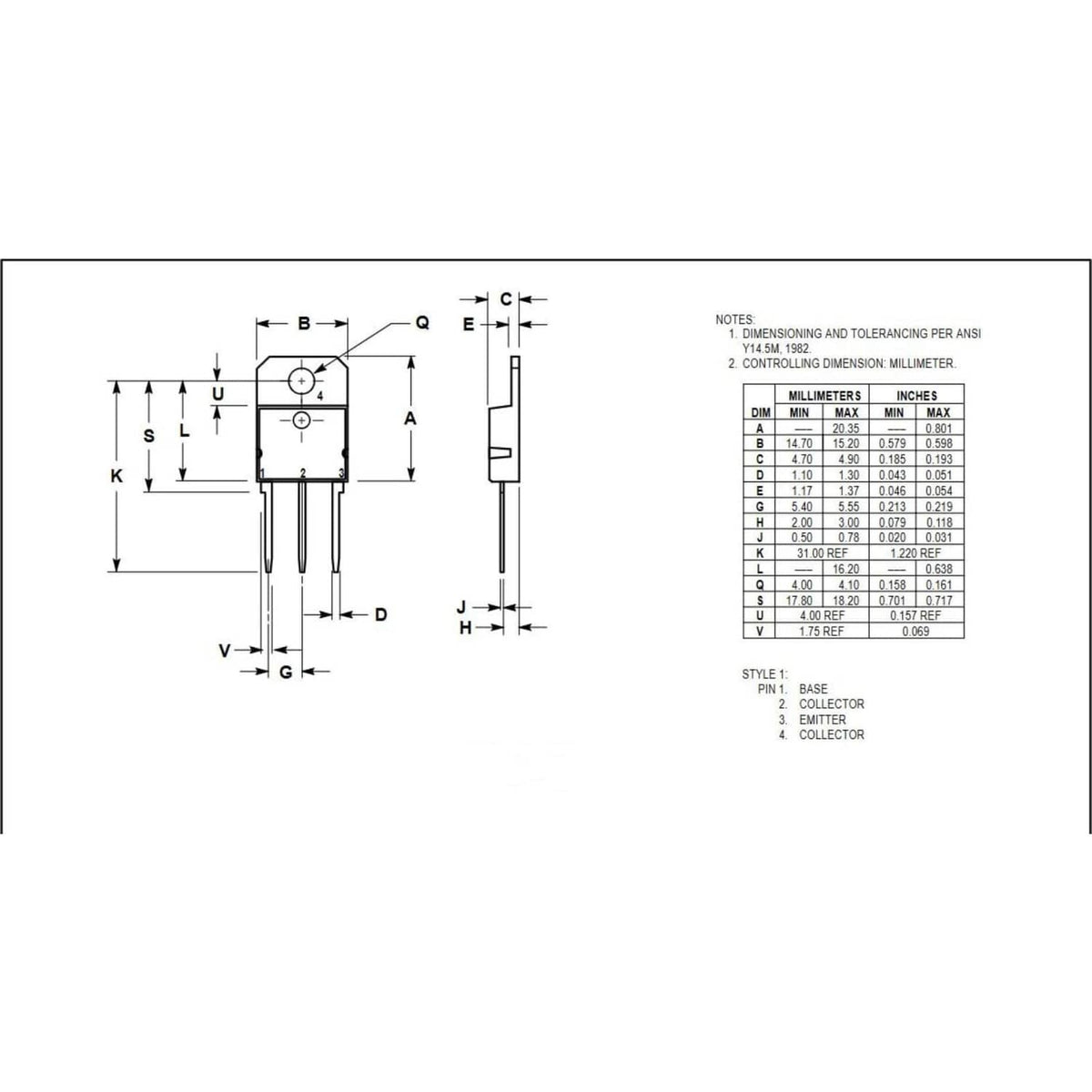

  • Transistor mechanical dimensions diagram with lead spacing and size measurements
  • Set of black TO-3P transistors with three white leads each, multiple units shown
  • Two black TO-3P transistor packages with three white leads and printed markings on top
  • Two black TO-3P transistor packages shown from the top with three lead pins
  • Pair of black TO-3P transistors at an angle with three white leads each
  • Transistor characteristics table with electrical parameters and min, typ, max columns
  • Electrical characteristics table for transistors with OFF and ON parameter limits
  • Transistor mechanical dimensions diagram with lead spacing and size measurements
10pcs TIP142 TIP147 NPN PNP Darlington Transistors 100V TO-3P

10pcs TIP142 TIP147 NPN PNP Darlington Transistors 100V TO-3P

$32.59
FREE, Fast Shipping on all orders!

Product Overview

This 10pcs set includes TIP142 and TIP147 NPN PNP Darlington Transistors for electronic circuit projects, servicing, and component replacement. Each transistor is specified at 100V and uses a TO-3P package.

Key Features

  • 10pcs transistor set
  • Includes TIP142 and TIP147 transistors
  • NPN and PNP Darlington transistor types
  • 100V specification
  • TO-3P package

Product Details

  • Product Type: Darlington Transistors
  • Quantity: 10pcs
  • Part Numbers: TIP142 and TIP147
  • Transistor Type: NPN and PNP
  • Voltage: 100V
  • Package: TO-3P

Frequently Asked Questions

Q: What is the normal purpose of these transistors? A: They are used as electronic circuit components in projects, servicing, and component replacement where TIP142 or TIP147 NPN or PNP Darlington transistors are required.

Q: What should I verify before purchase? A: Confirm the required TIP142 or TIP147 part number, NPN or PNP type, 100V specification, and TO-3P package for your circuit.
